Removal

FRONT STRUT ASSEMBLY

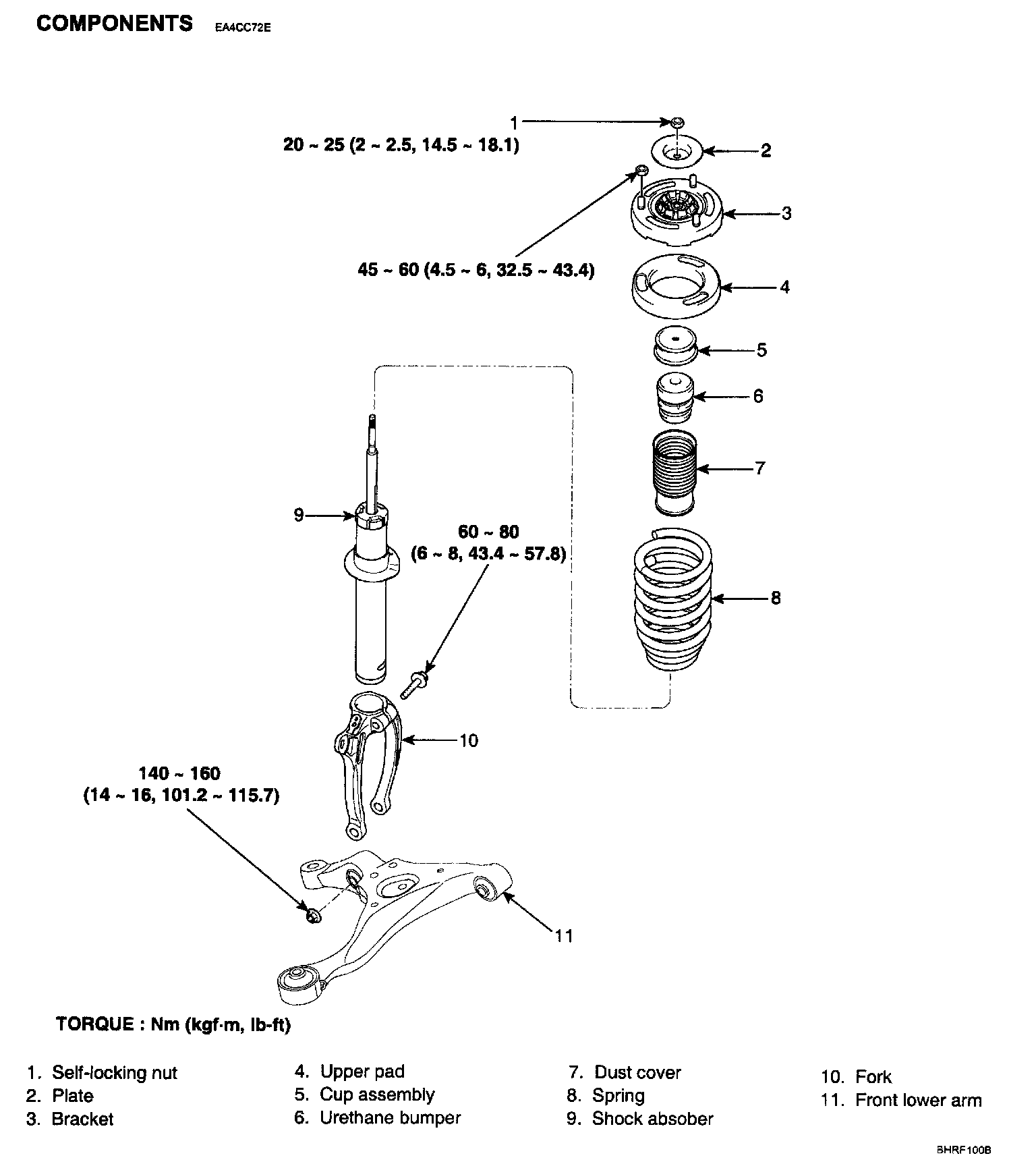

COMPONENTS:

REMOVAL
1. Loosen the wheel nuts slightly. Raise the front of the vehicle, and make sure it is securely supported.
2. Remove the front wheel and tire from front hub.

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire.

3. Remove the brake hose bracket (A) and speed sensor cable mounting bolt (B) from the front axle assembly.





4. Remove the speed sensor bolt (C).
5. Remove the front stabilizer link (B) from the fork (A).





6. Remove the fork (A) from the front lower arm connector (B).





7. Remove the front strut assembly (A) from the fork (B).





8. Remove the strut upper mounting nuts (A).
