Rear

REAR WHEEL SPEED SENSOR

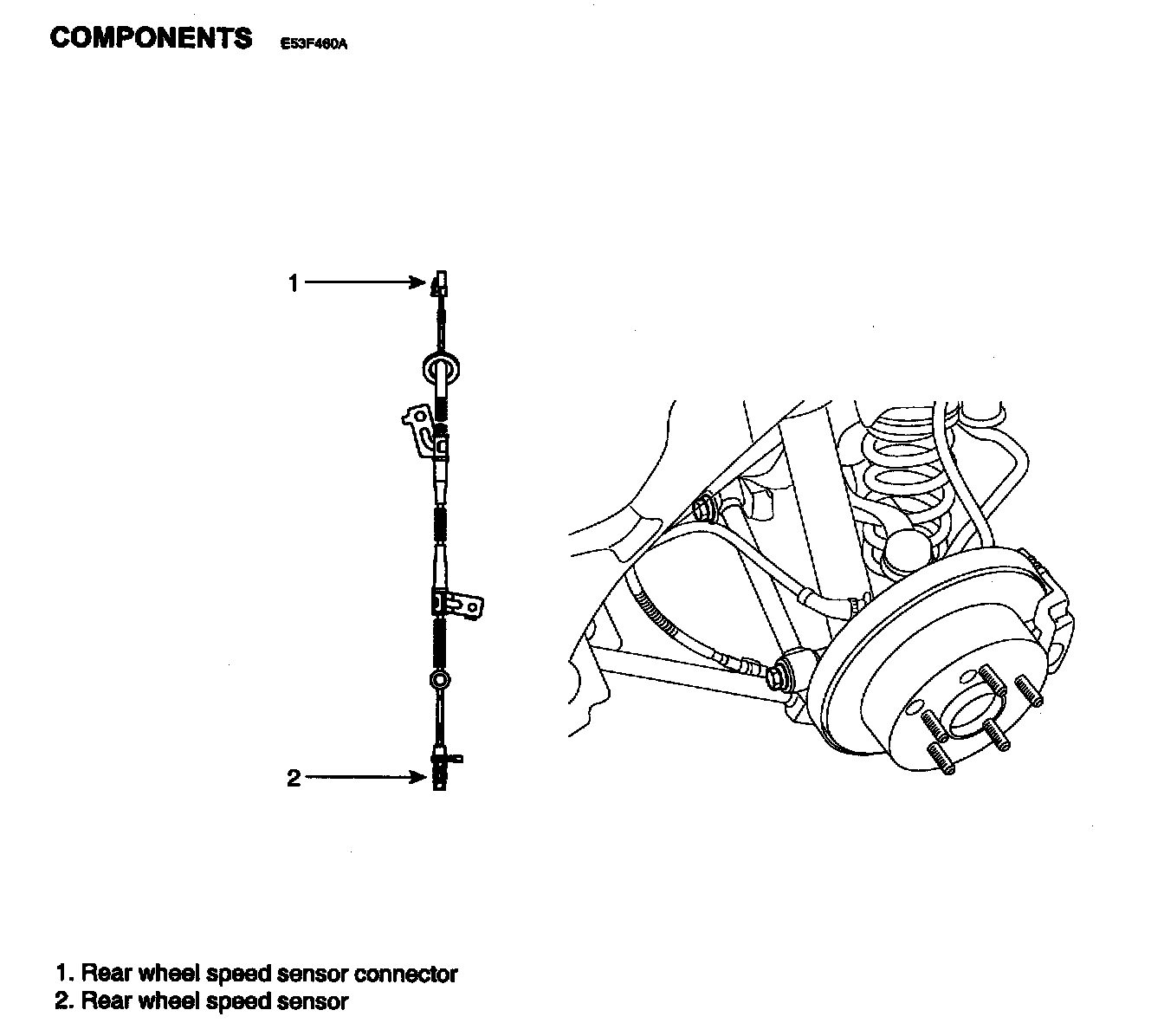

COMPONENTS:

REMOVAL





1. Remove the rear wheel speed sensor mounting bolt (A).





2. Remove the rear seat side pad then disconnect the rear wheel speed sensor connector (A).
