Seat Temperature Switch: Testing and Inspection
SEAT WARMER SWITCHINSPECTION
1. Disconnect the negative (-) battery terminal.

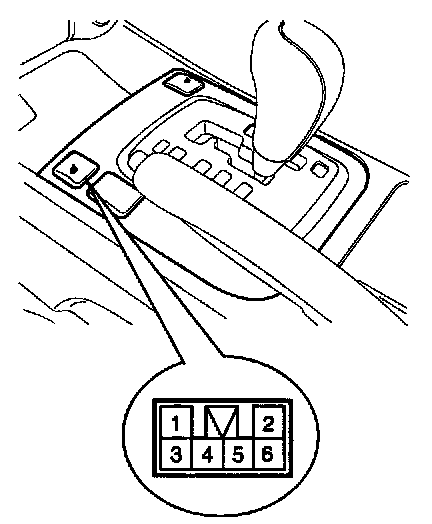

2. Remove the seat warmer switch from the floor console upper cover with scraper.

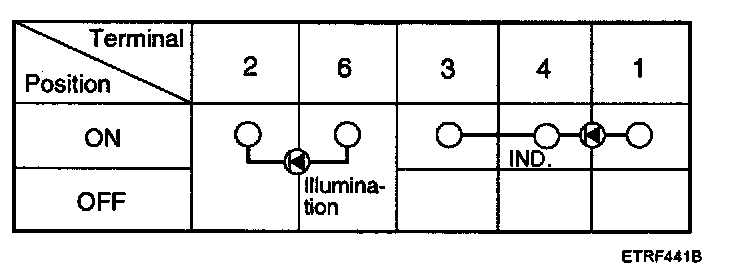

3. Check for continuity between the terminals in each switch position according to the table.
