Power Seat Switch: Testing and Inspection

This article has been updated by Techincal Service bulletin (TSB) 05-90-013 dated December 2005.

POWER SEAT SWITCH

INSPECTION

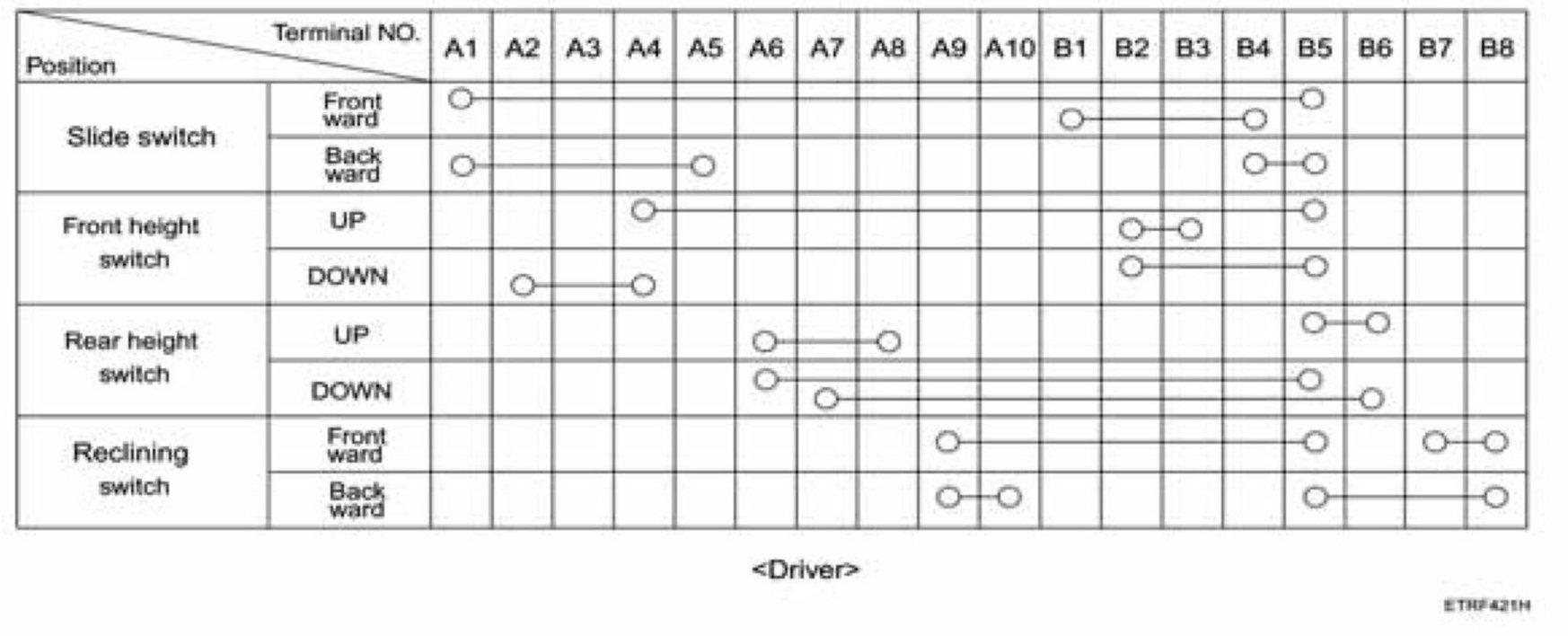

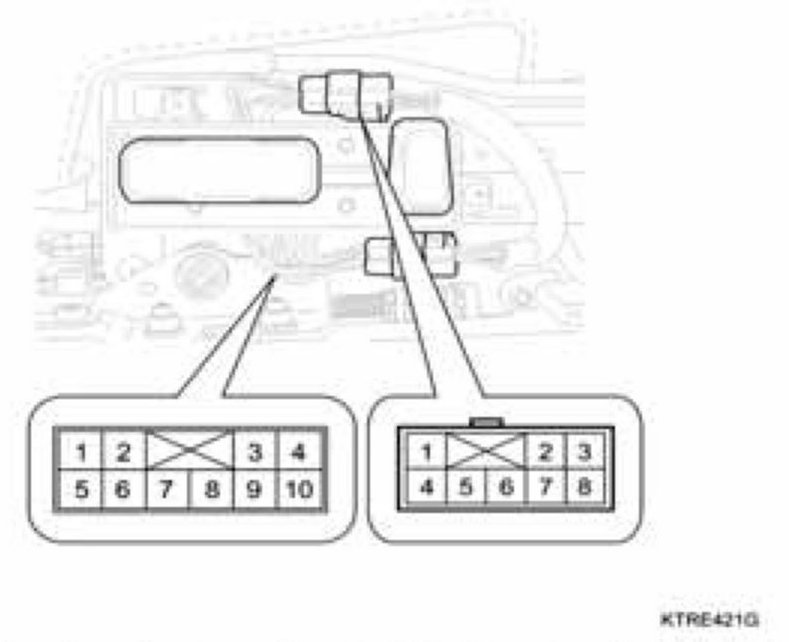

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the switch.
