Transmission Speed Sensor: Testing and Inspection
SENSORSInput shaft & Output shaft speed sensor
^ Type: Hall sensor
^ Current consumption: 22 mA (MAX.)
^ Sensor body and sensor connector have been unified as one.
HALL TYPE SENSOR: SPECIFICATION
HALL TYPE SENSOR: SPECIFICATION:
WAVE FORM WITH HI-SCAN
WAVE FORM WITH HI-SCAN:

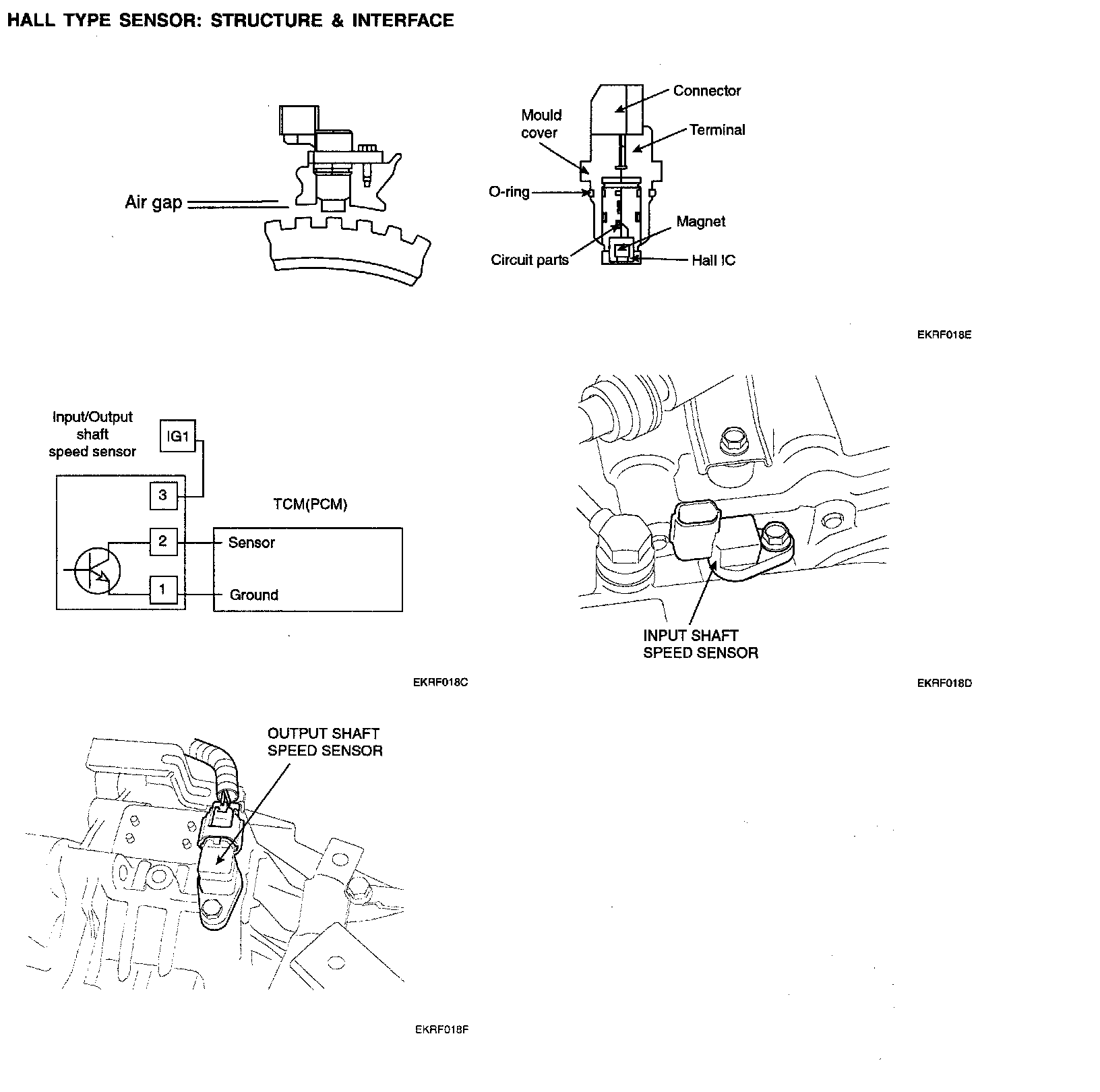

HALL TYPE SENSOR: STRUCTURE & INTERFACE
HALL TYPE SENSOR: STRUCTURE & INTERFACE:
