Combination Switch: Testing and Inspection

INSPECTION

LIGHTING SWITCH INSPECTION



















With the multi function switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multi-function switch.

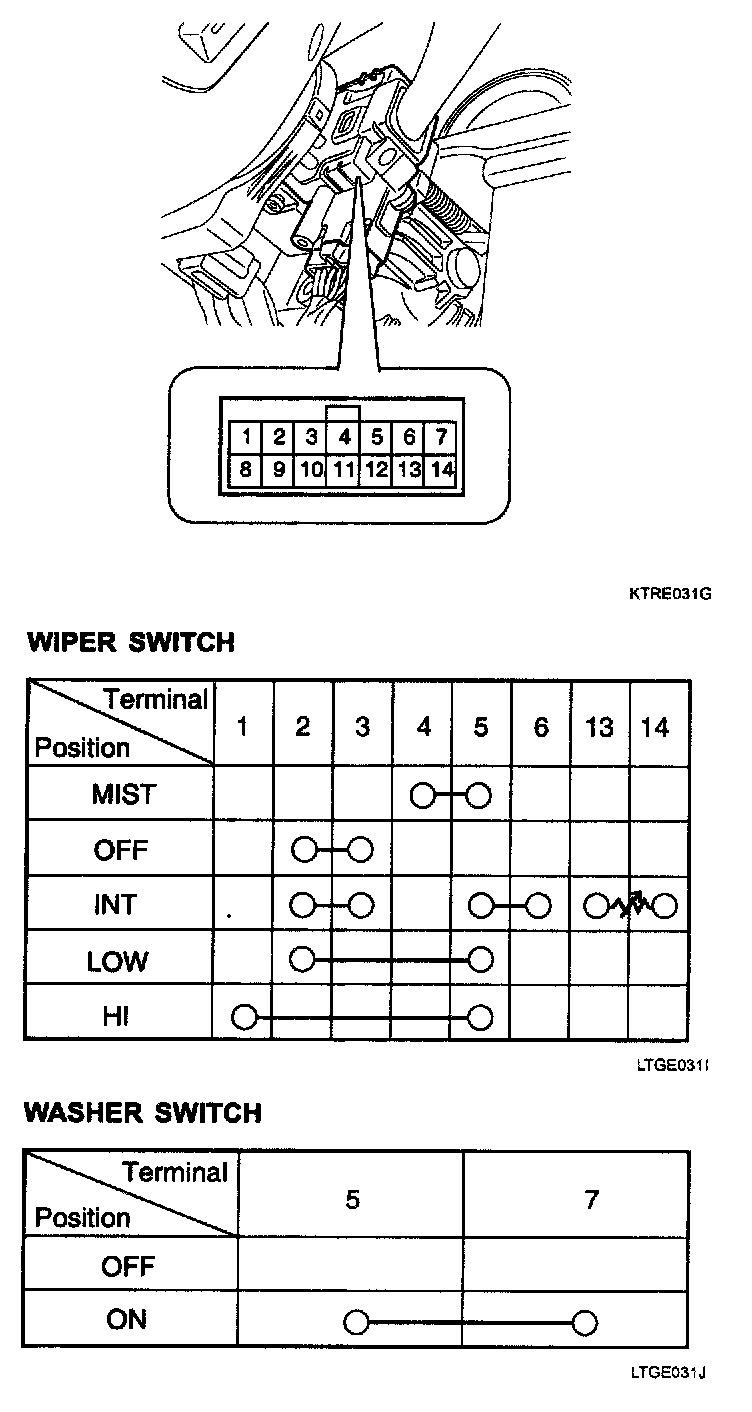

WIPER AND WASHER SWITCH INSPECTION




With the multi function switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multi-function switch.
