Backup Lamp Switch: Testing and Inspection

BACK UP LAMP SWITCH INSPECTION

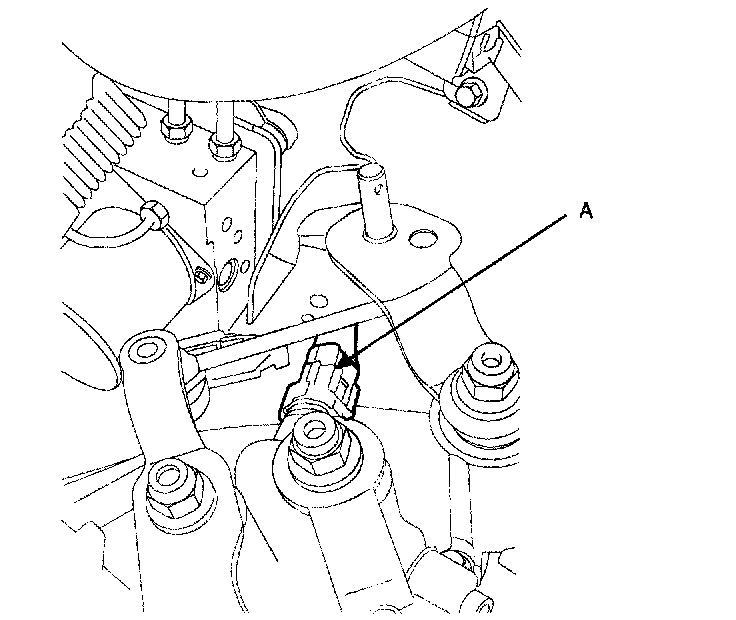

1. Disconnect the back up lamp switch connector (A).





2. Inspect the continuity of the switch. When the shift lever is located in reverse range, it should be applied an electric current.
3. Replace the back up lamp switch, if necessary.
TORQUE: 29.4 - 34.4 Nm (300 - 350 kgf-cm, 21.7 - 25.3ft. lbs.)
