Camshaft Bearing: Specifications

Camshaft Bearing Cap Bolts

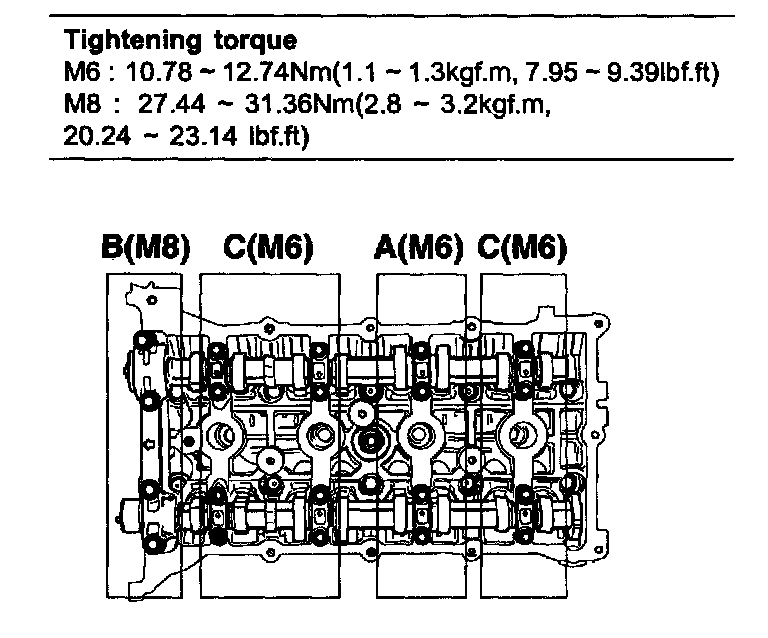

Install camshaft bearing caps in their proper locations.

Tightening order Group A - B - C
M6 10.78 - 12.74 Nm (1.1 - 1.3 kgf.m, 7.95 - 9.39 ft. lbs.)
M8 27.44 - 31.36 Nm (2.8 - 3.2 kgf.m, 20.24 - 23.14 ft. lbs.)
