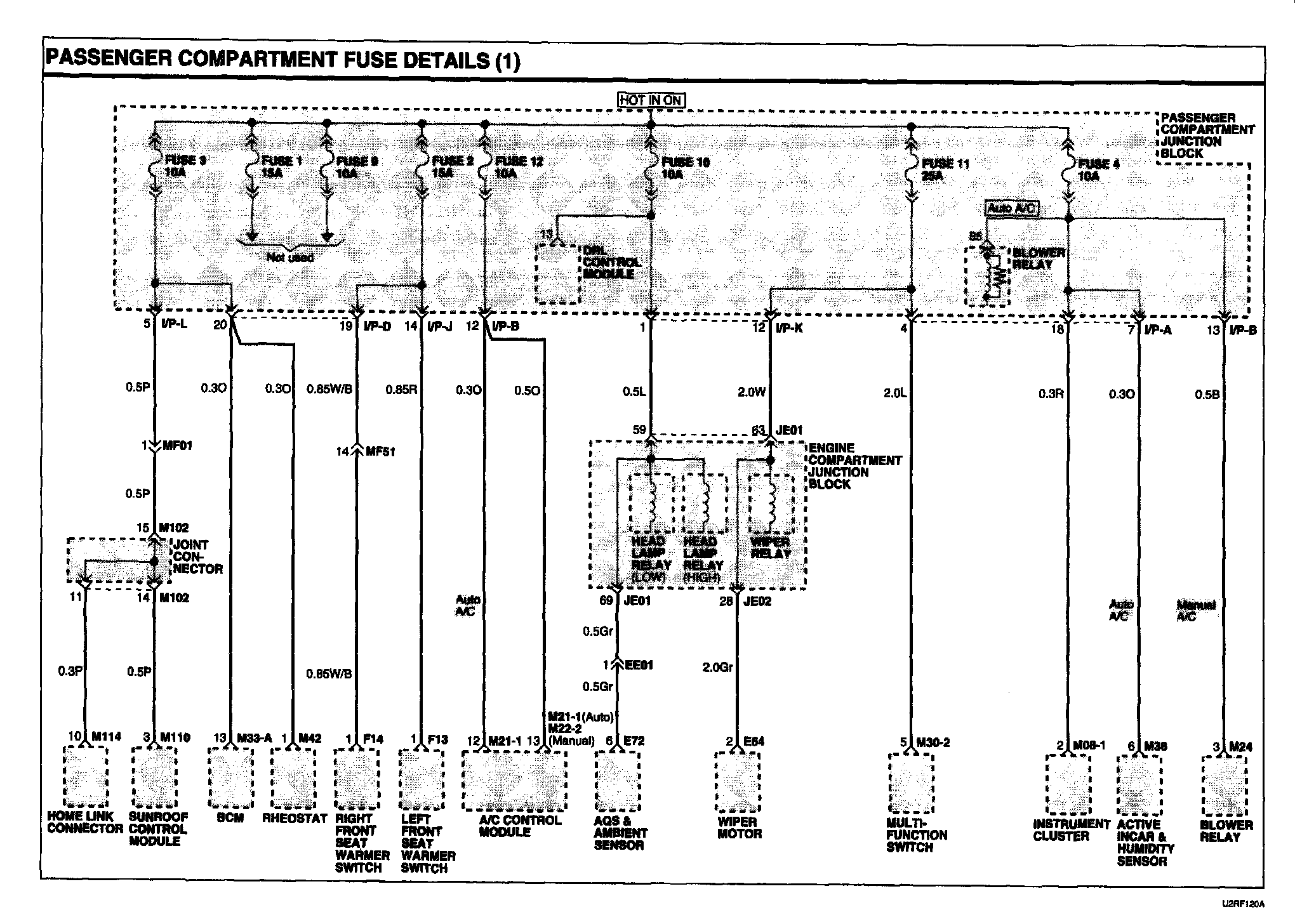

Passenger Compartment Fuse Details (1)

Passenger Compartment Fuse Details (1):






Next Diagram Passenger Compartment Fuse Details (2)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
