Yaw Rate Sensor: Description and Operation

YAW-RATE SENSOR AND LATERAL G SENSOR





DESCRIPTION
1. The yaw-rate & lateral G sensor is applied for the ESC system.
2. The yaw-rate is the angular velocity, when a vehicle turns a corner, and the lateral G is the acceleration to move a vehicle out of the way when cornering.
3. The sensor is located in the crash pad lower floor on vehicle.

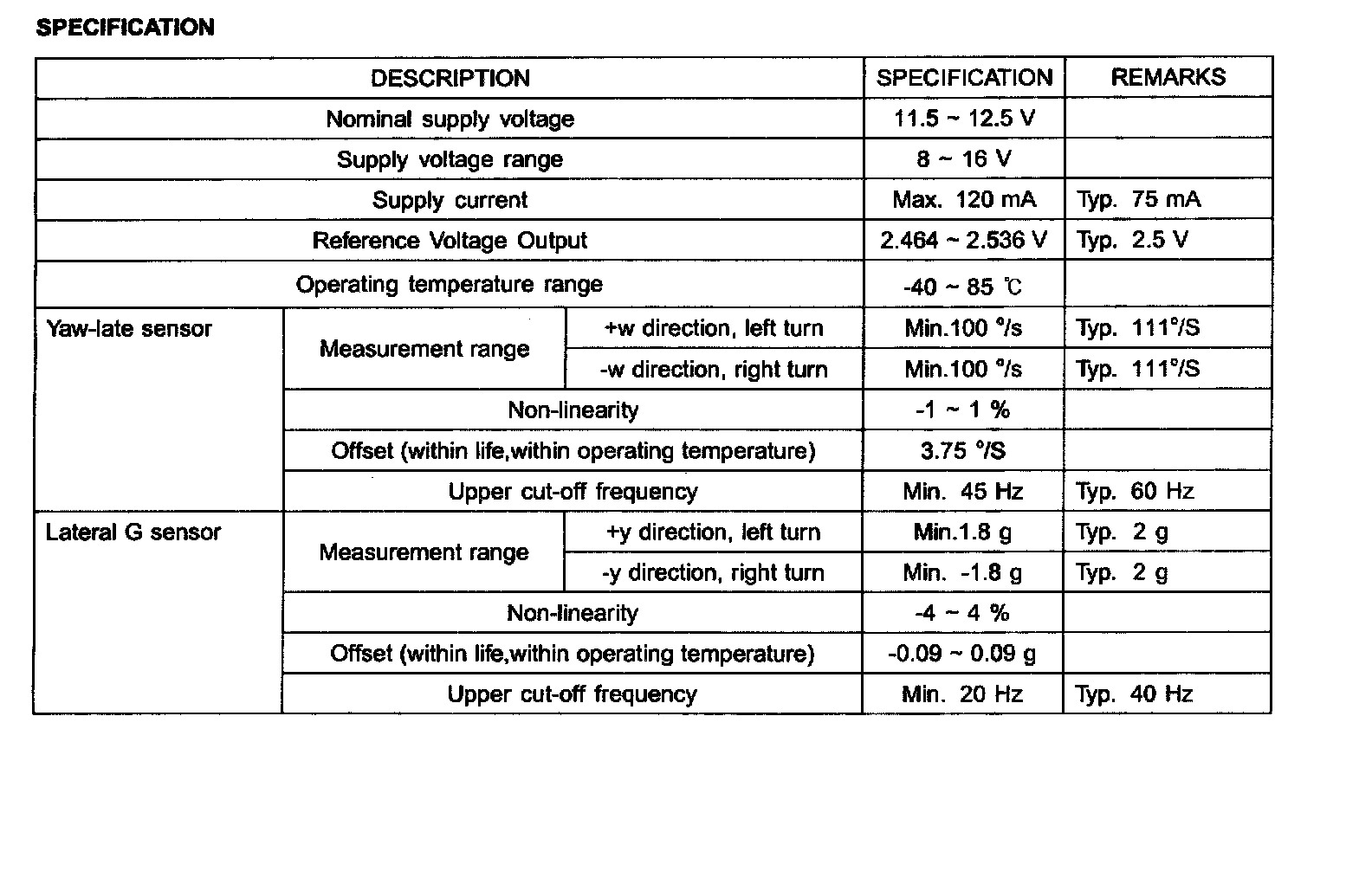

SPECIFICATION

SPECIFICATION:

OUTPUT CHARACTERISTIC

OUTPUT CHARACTERISTIC:

CIRCUIT DIAGRAM (YAW-RATE & LATERAL G SENSOR)

CIRCUIT DIAGRAM (YAW-RATE & LATERAL G SENSOR):
