Headliner: Service and Repair

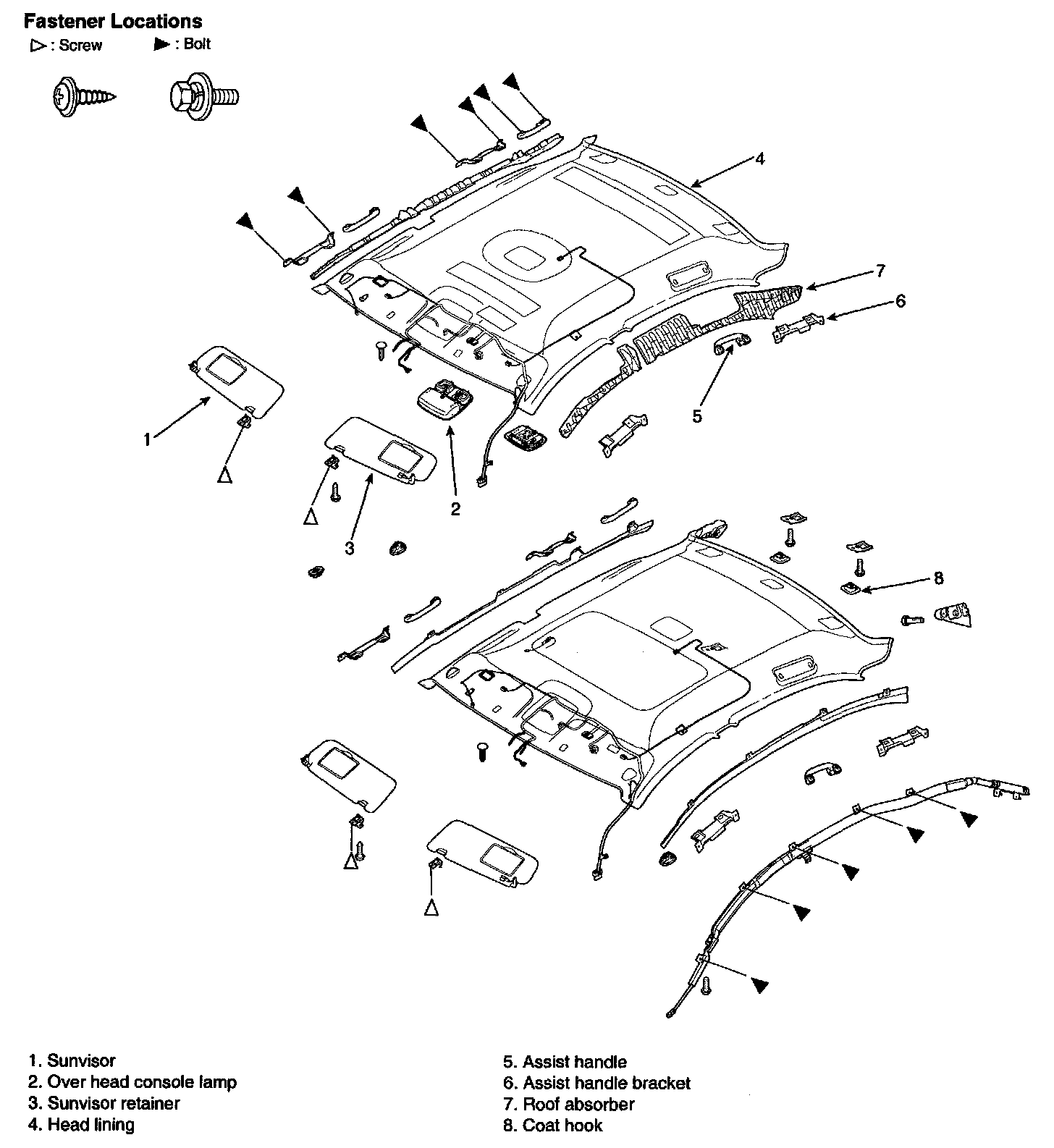

ROOF TRIM

1. Remove the trim.

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

2. Installation is the reverse of removal.

NOTE: Replace any damage clips.
