Initial Inspection and Diagnostic Overview
>>
Troubleshooting Chart
Troubleshooting Chart

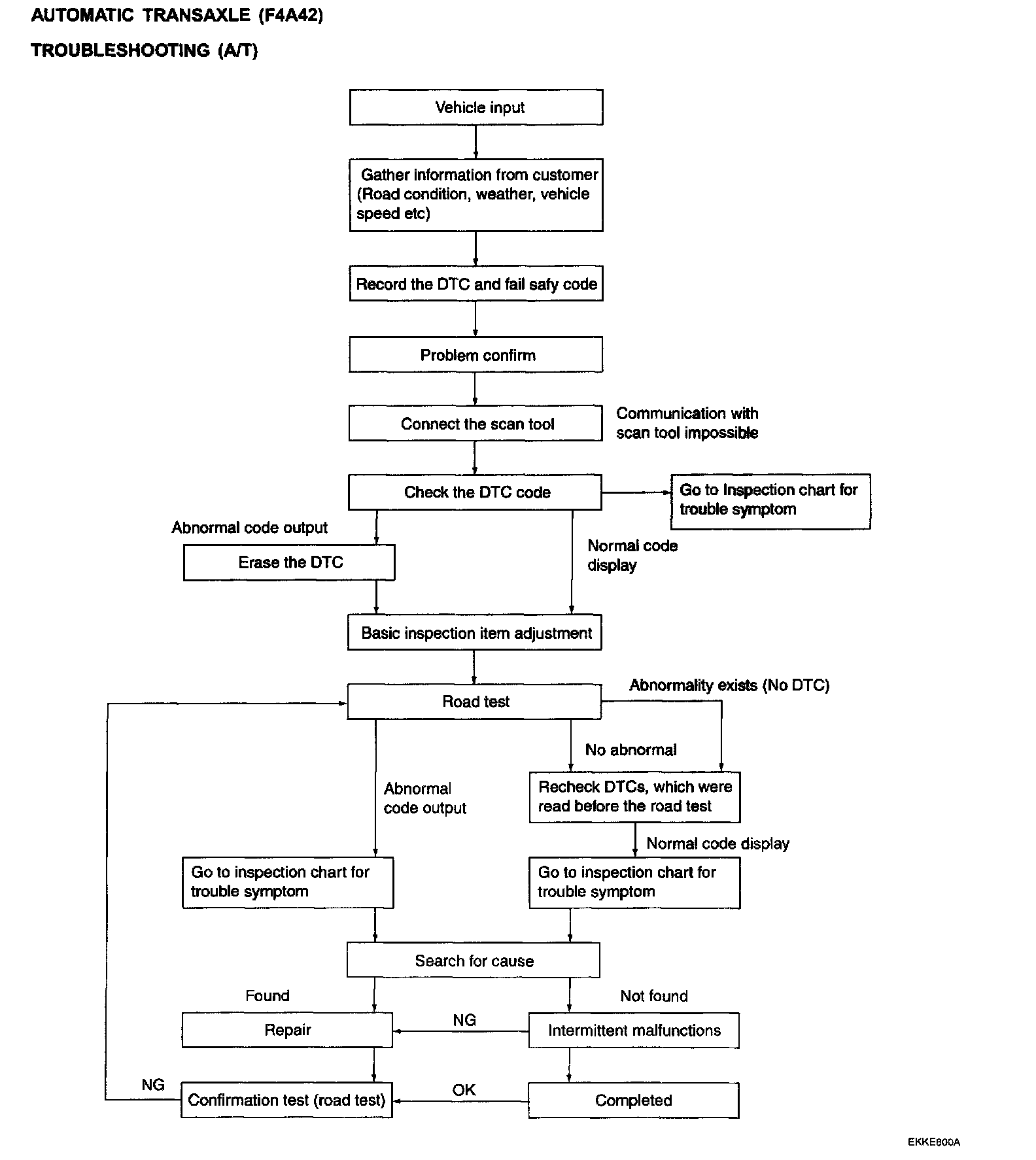

AUTOMATIC TRANSAXLE (F4A42) DIAGNOSIS FLOW:
