TORQUE CONVERTER STALL TEST JUDGEMENT RESULTS

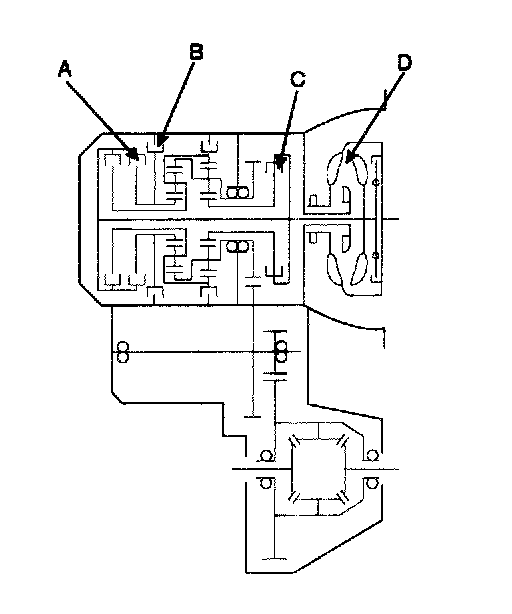

1. Stall speed is too high in both "D" and "R" ranges
^ Low line pressure
^ Low & reverse brake (B) slippage
2. Stall speed is too high in "D" range only
^ Underdrive clutch (c) slippage
3. Stall speed is too high in "R" range only
^ Reverse clutch (A) slippage
4. Stall speed too low in both "D" and "R" ranges
^ Malfunction of torque converter (D)
^ Insufficient engine output
