Component Locations

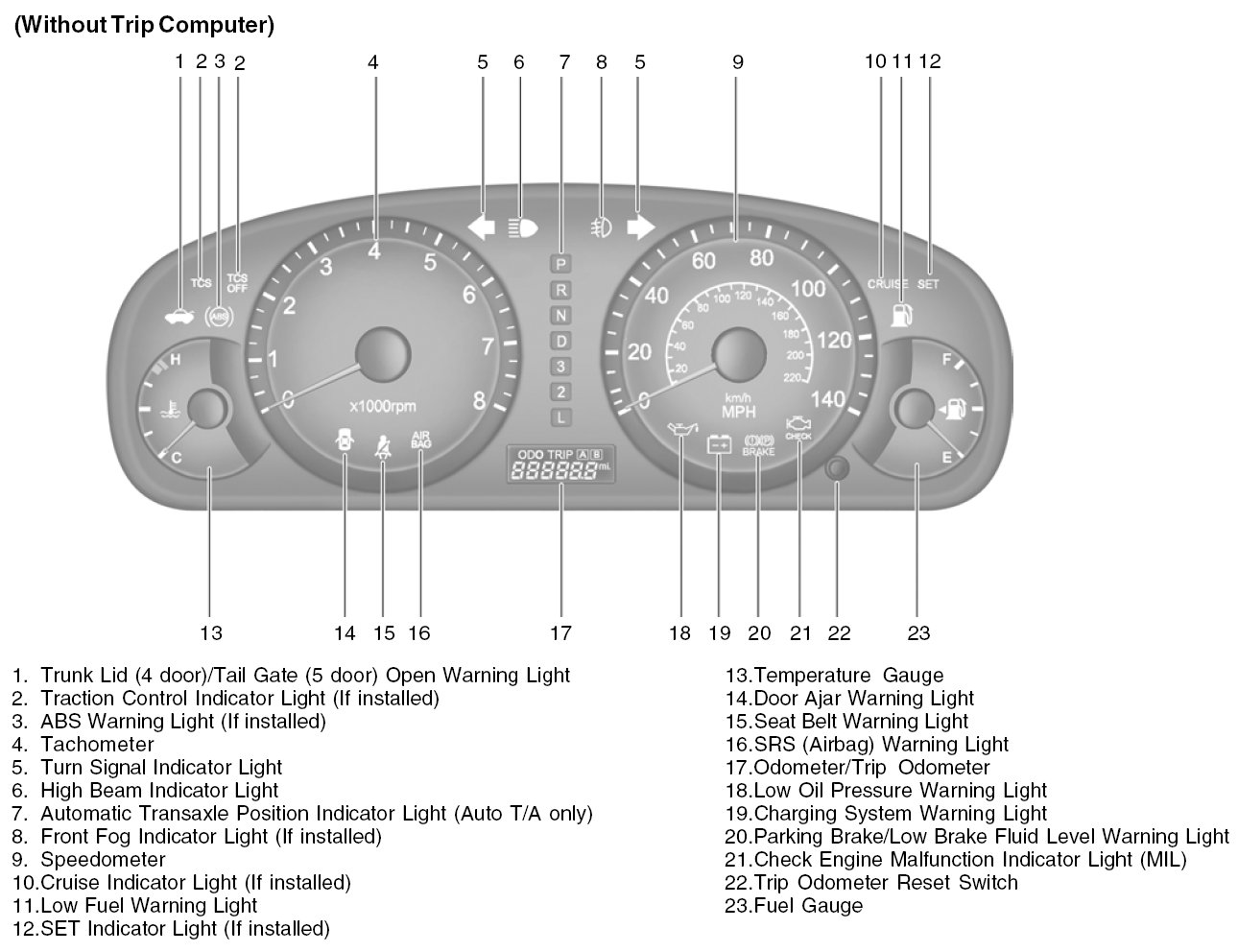

Without Trip Computer:

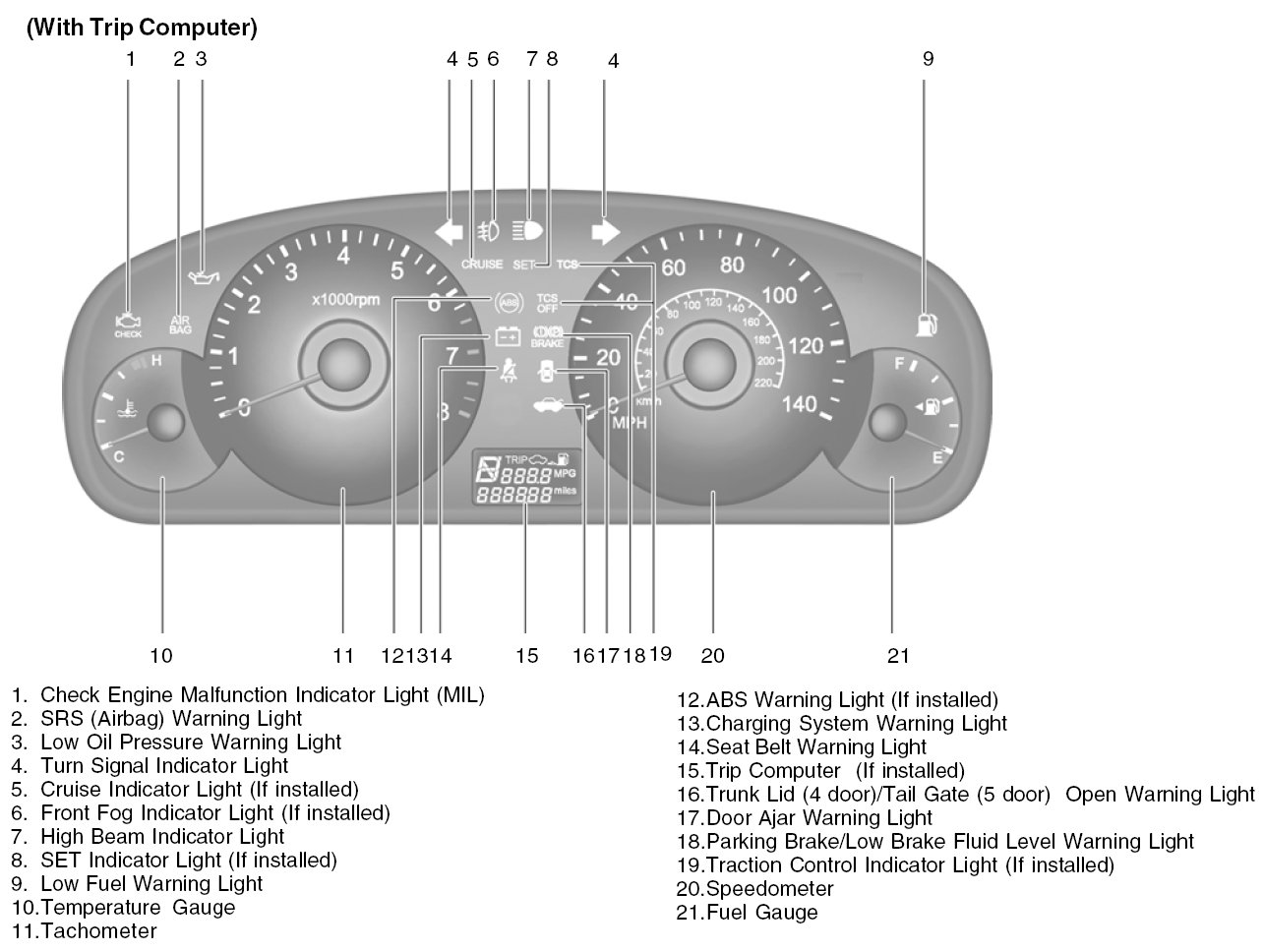

With Trip Computer:

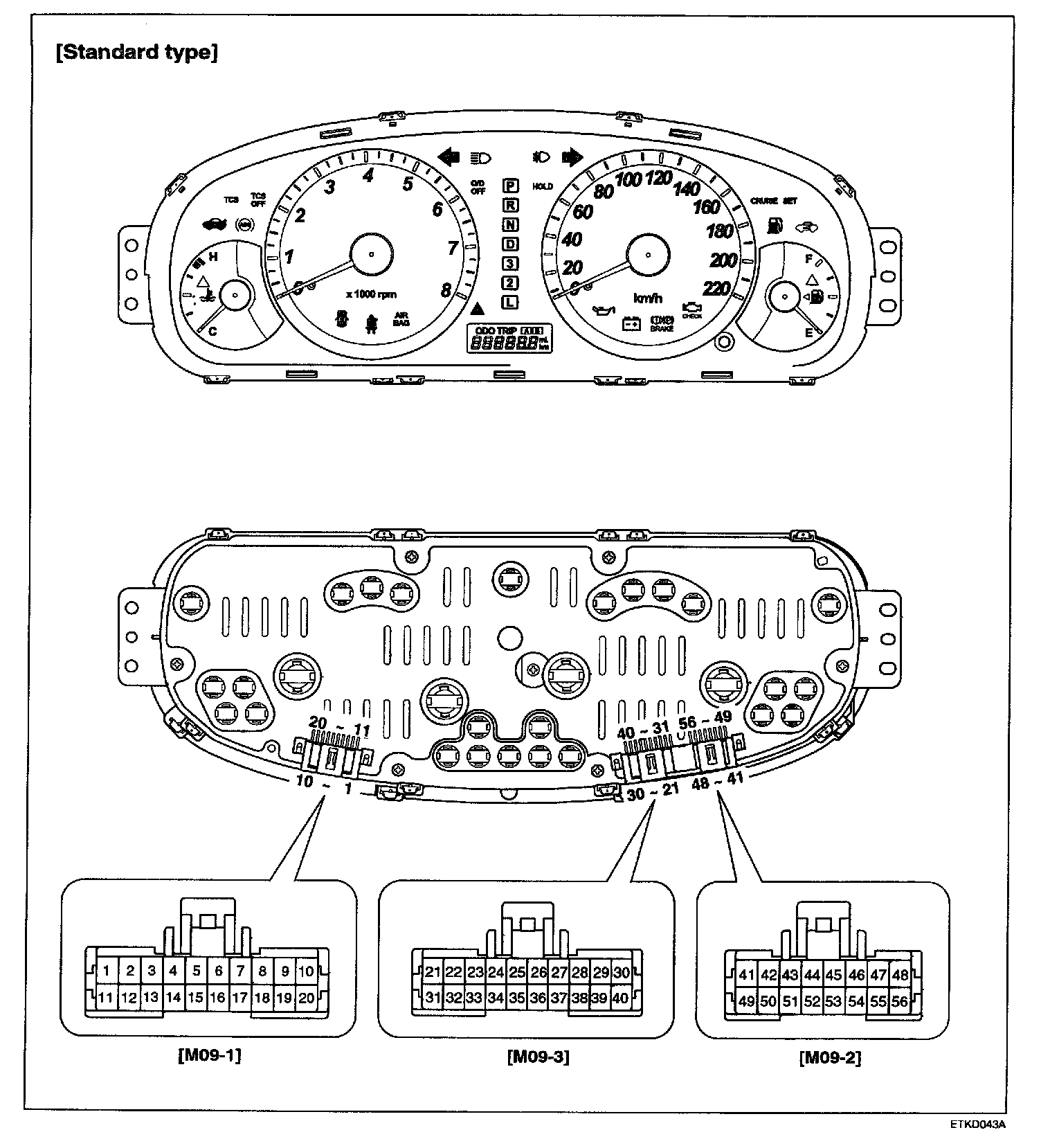

Instrument Cluster:

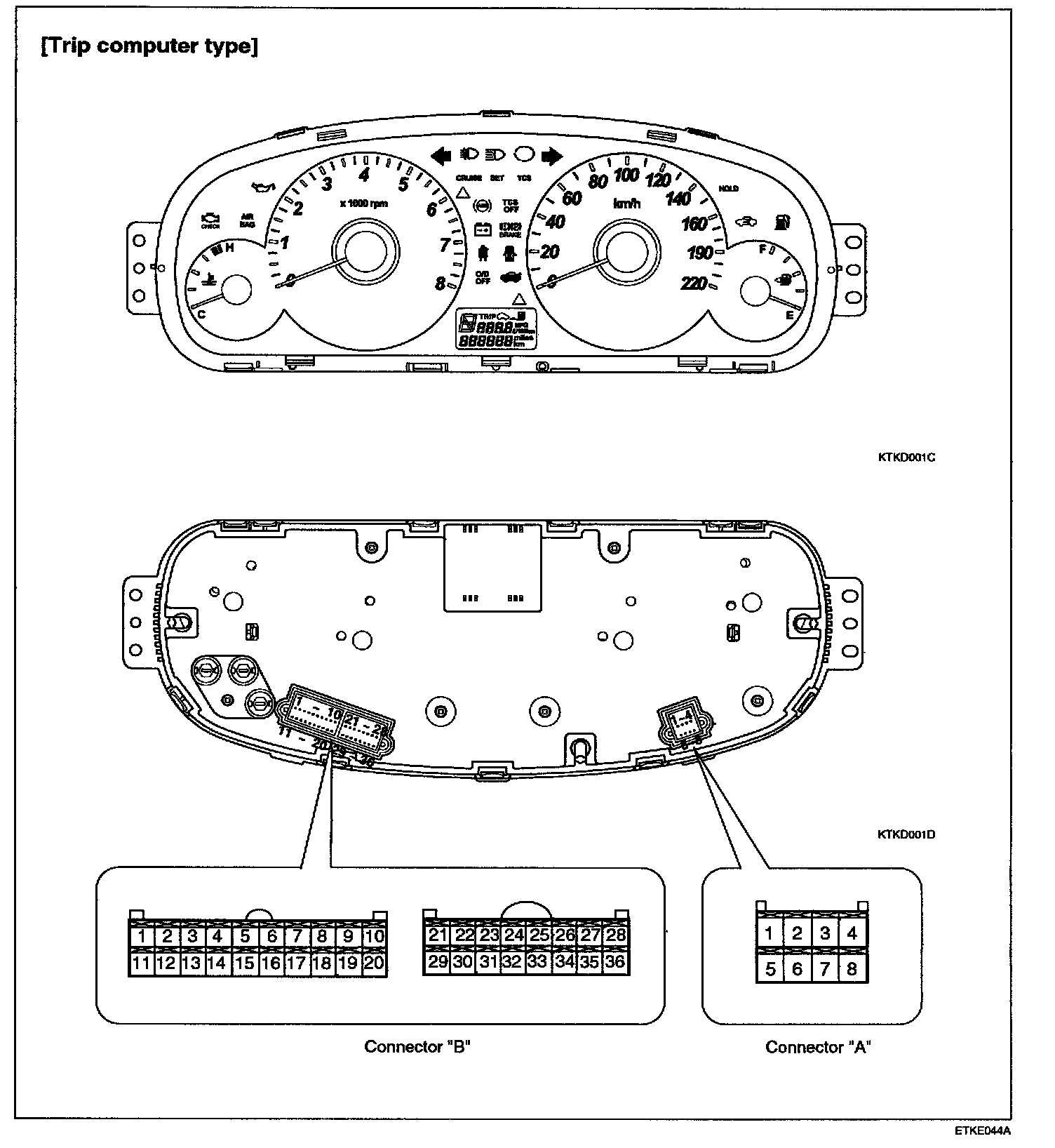

Instrument Cluster Part 2:
