Automatic Transmission System Hydraulic Diagrams: Third

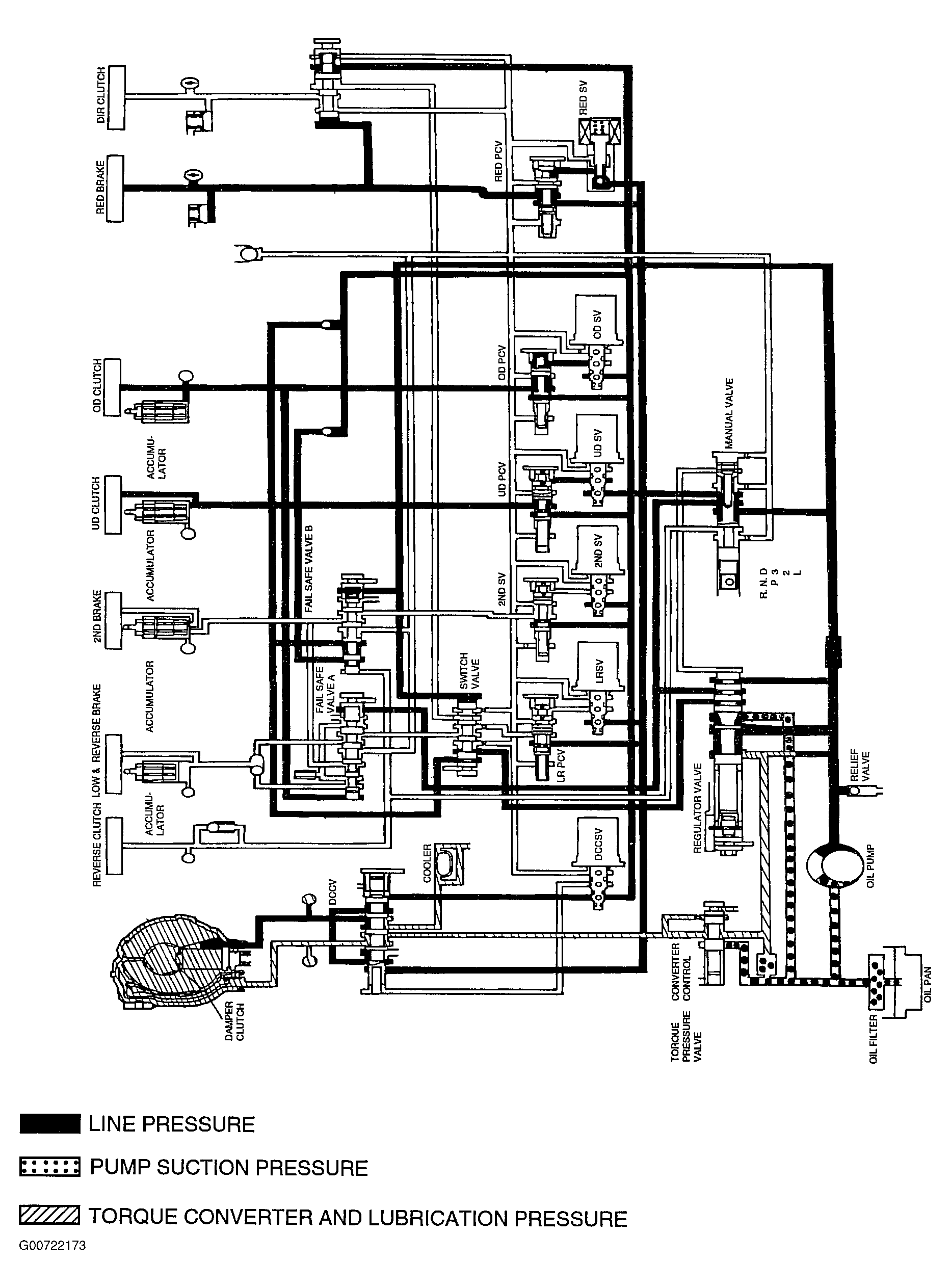

Fig 1: Third

G00722173

Courtesy of HYUNDAI MOTOR CO.
