Automatic Transmission System Hydraulic Diagrams: Second

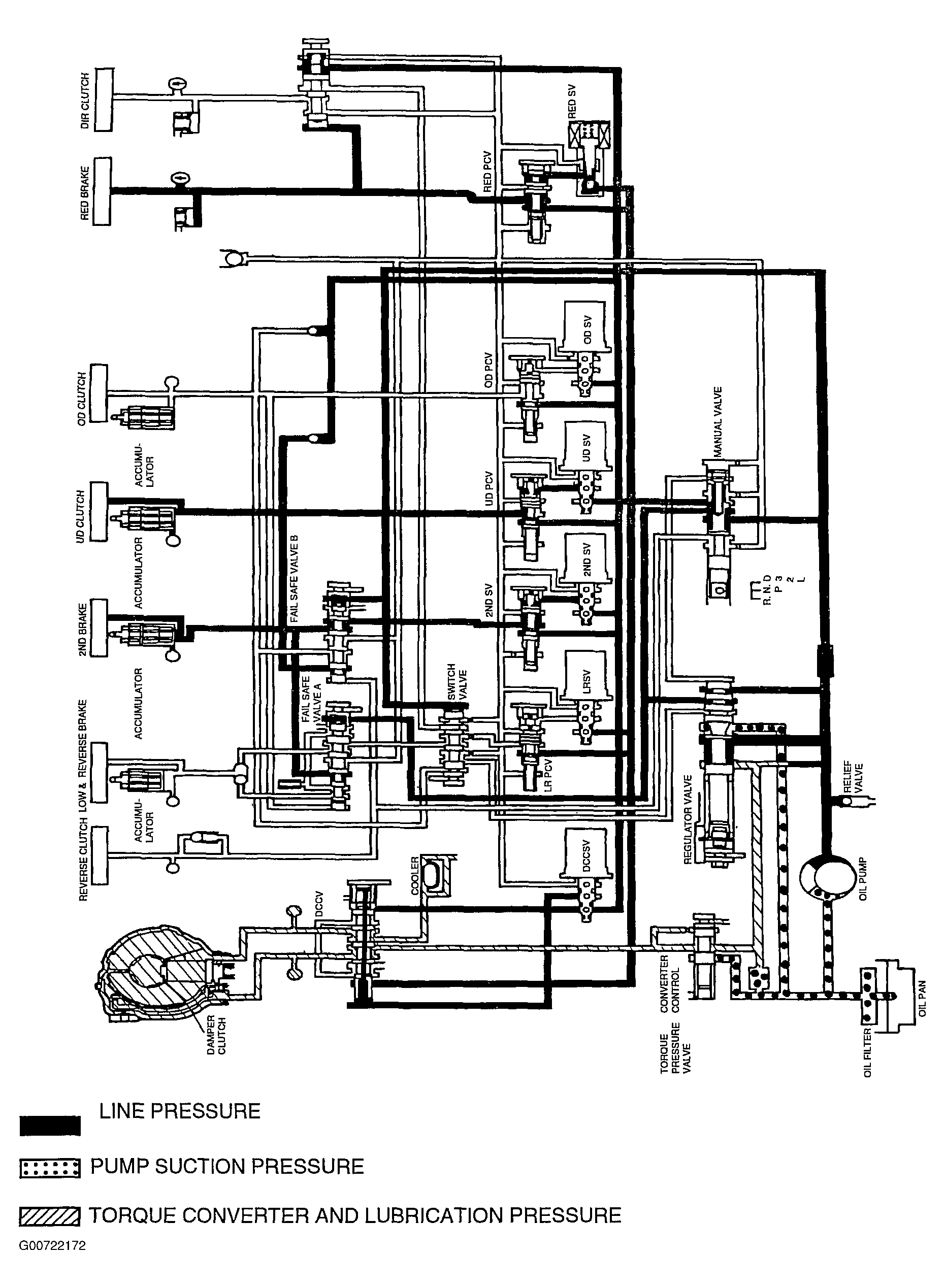

Fig 1: Second

G00722172

Courtesy of HYUNDAI MOTOR CO.
