Automatic Transmission System Hydraulic Diagrams: Reverse

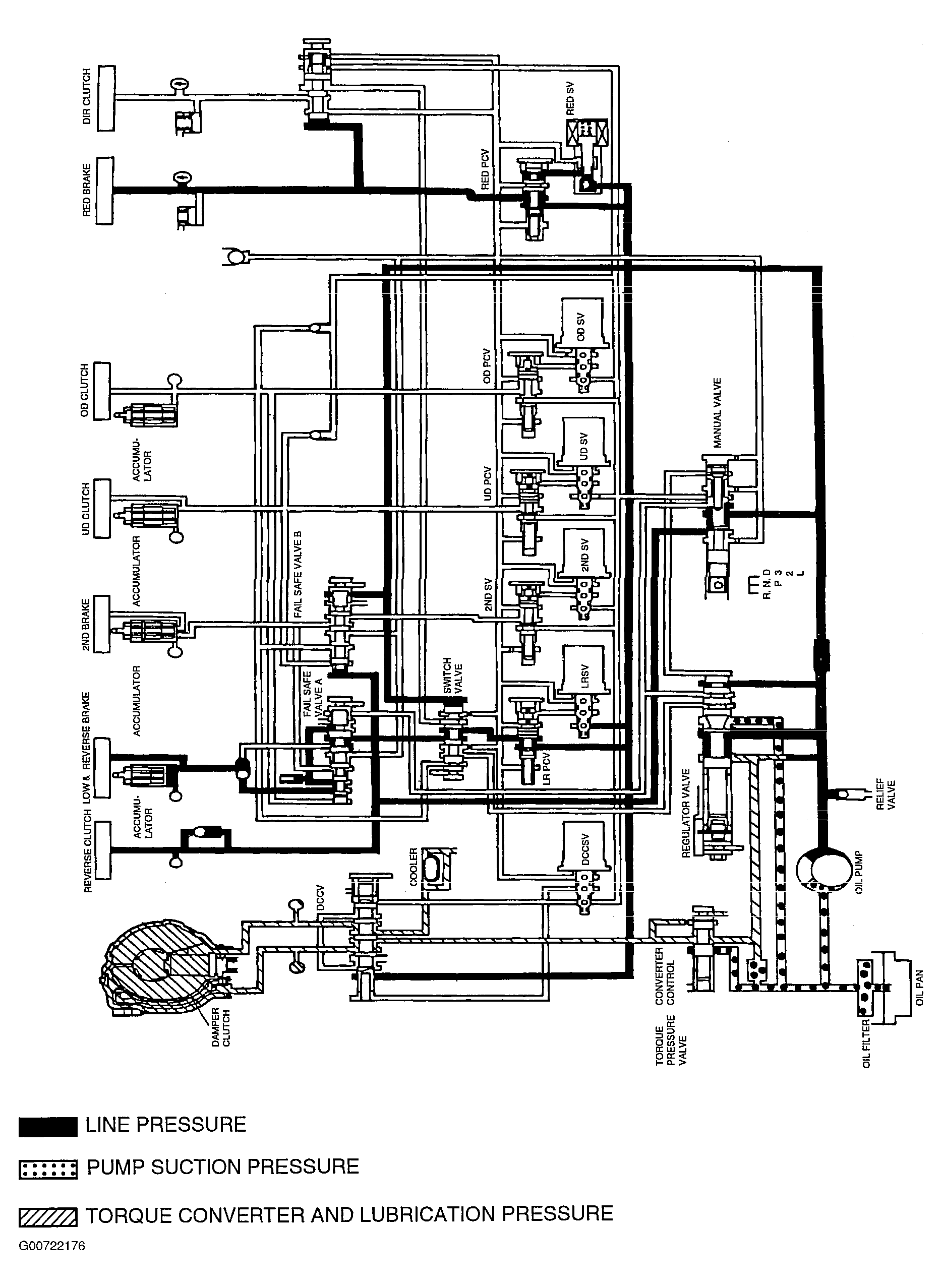

Fig 1: Reverse

G00722176

Courtesy of HYUNDAI MOTOR CO.
