Automatic Transmission System Hydraulic Diagrams: Fourth

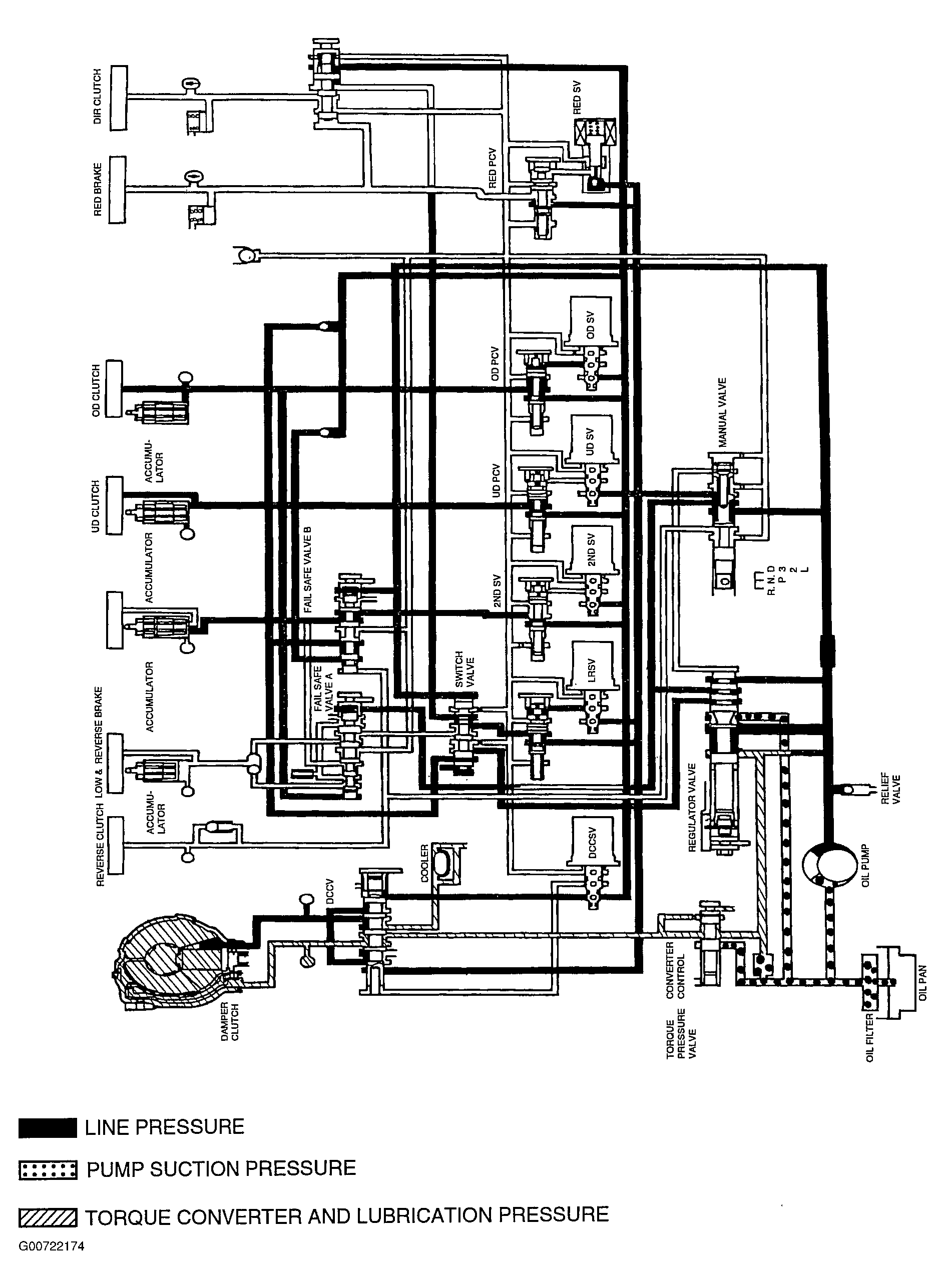

Fig 1: Fourth

G00722174

Courtesy of HYUNDAI MOTOR CO.
