Automatic Transmission System Hydraulic Diagrams: First

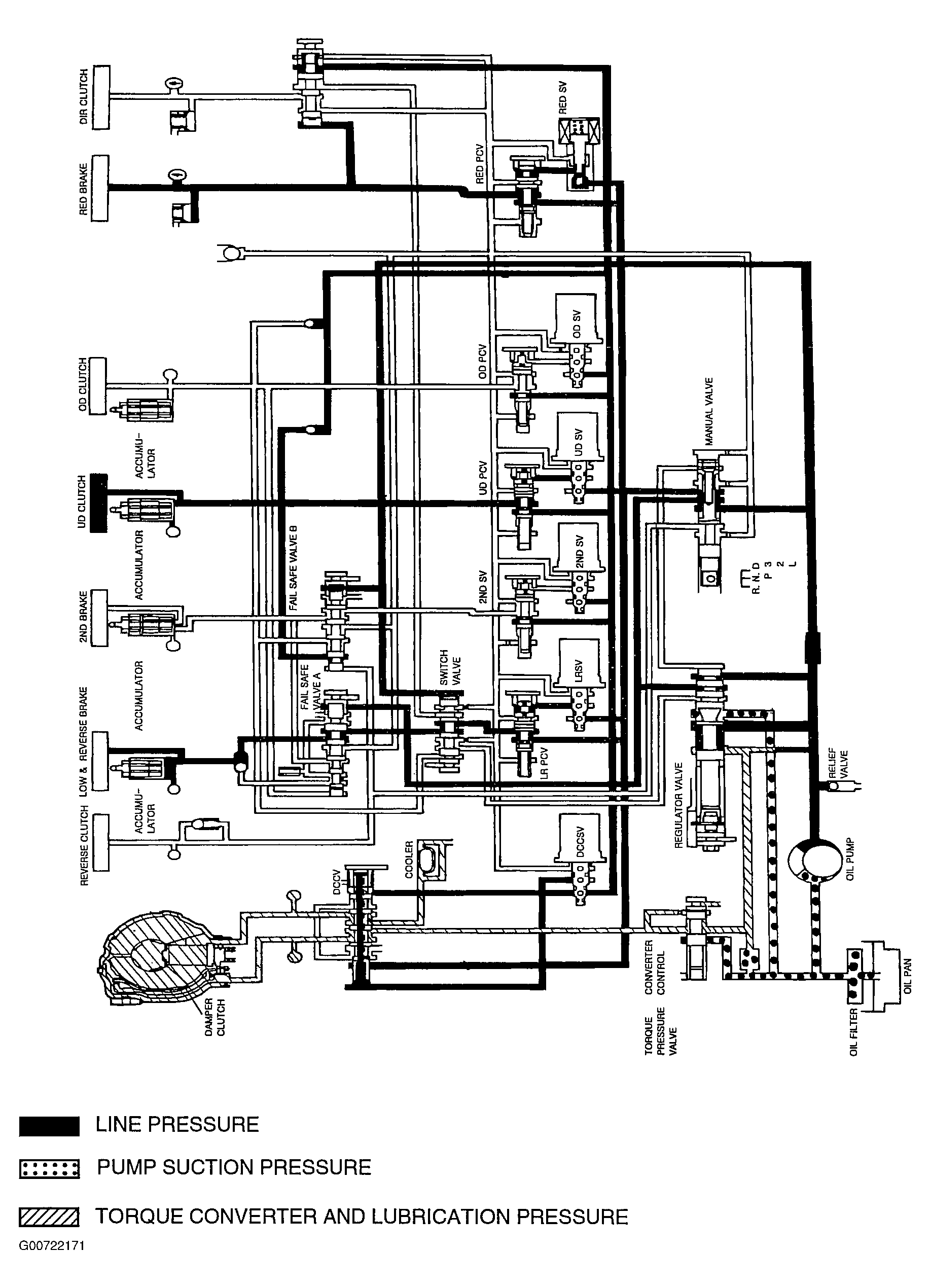

Fig 1: First

G00722171

Courtesy of HYUNDAI MOTOR CO.
