Wiper Motor: Service and Repair

REMOVAL




1. Remove the wiper arm.

NOTE: Care must be taken not to scratch the engine hood.

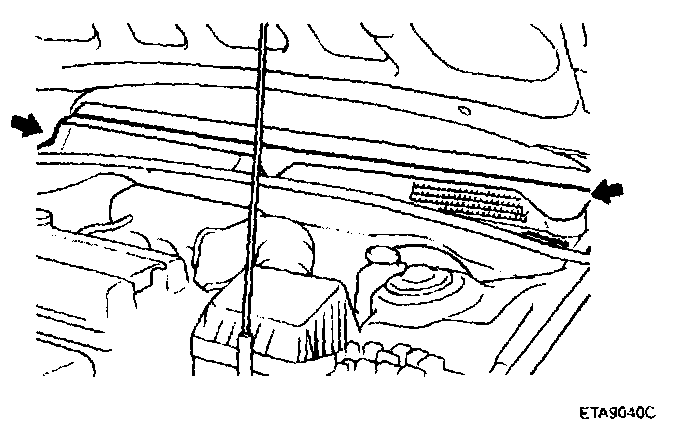

2. Remove the cowl top cover.

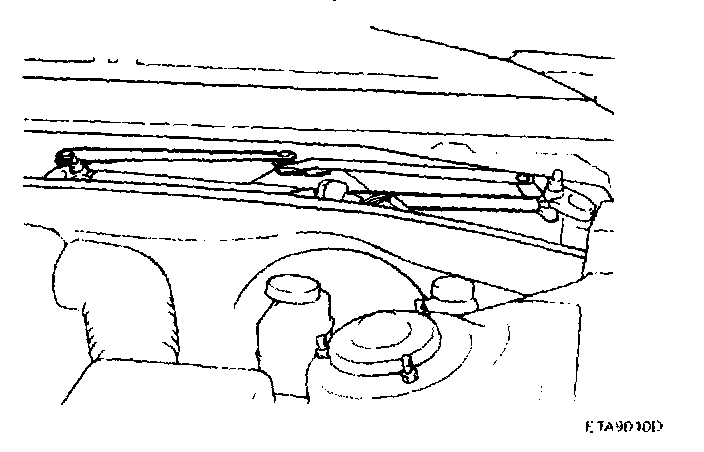

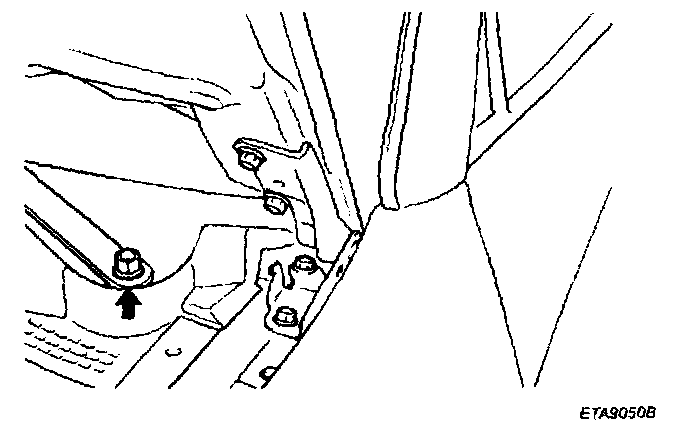

3. Disconnect the windshield wiper motor connector and remove the windshield wiper motor and the link.

Tightening torque
7-11 Nm (70-110 kg.cm, 5.1-8.0 lb.ft)

INSTALLATION

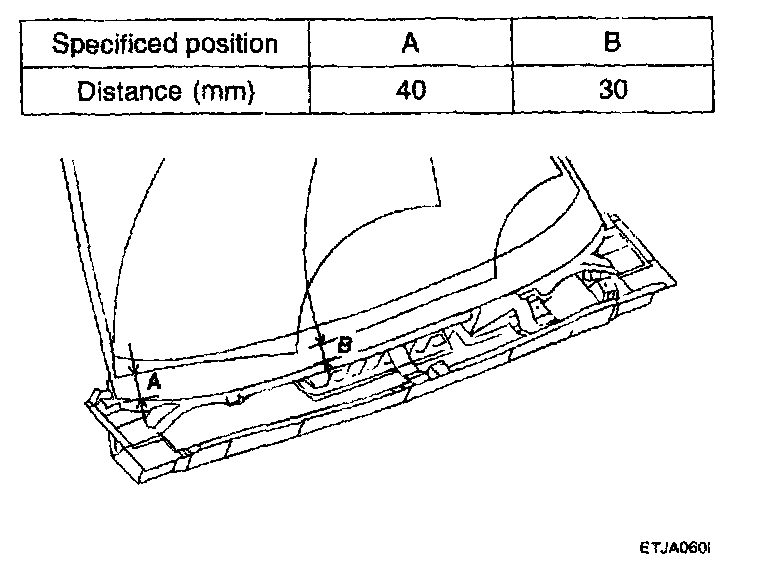

1. Install the wiper arm to the specified position.

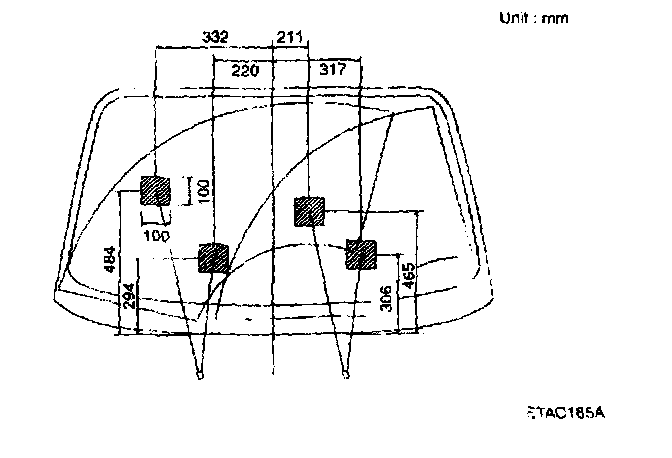

2. Set the washer nozzle on the specified spray position.
