Windshield Washer Motor: Testing and Inspection

FRONT WASHER MOTOR

INSPECTION
1 With the washer motor connected to the reservoir tank till the reservoir tank with water.

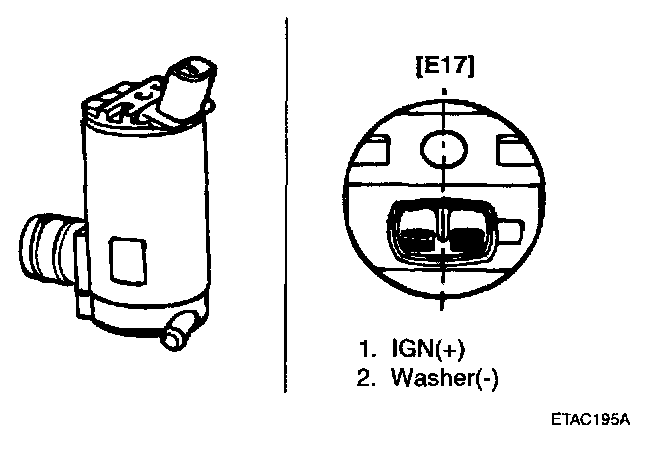

2. Connect positive (+) and negative (-) battery cables to terminals 2 and 1 respectively to see that the washer motor runs and water sprays from the front nozzles.




3. Check that the motor operates normally.
