Inspection Chart For Trouble Symptoms

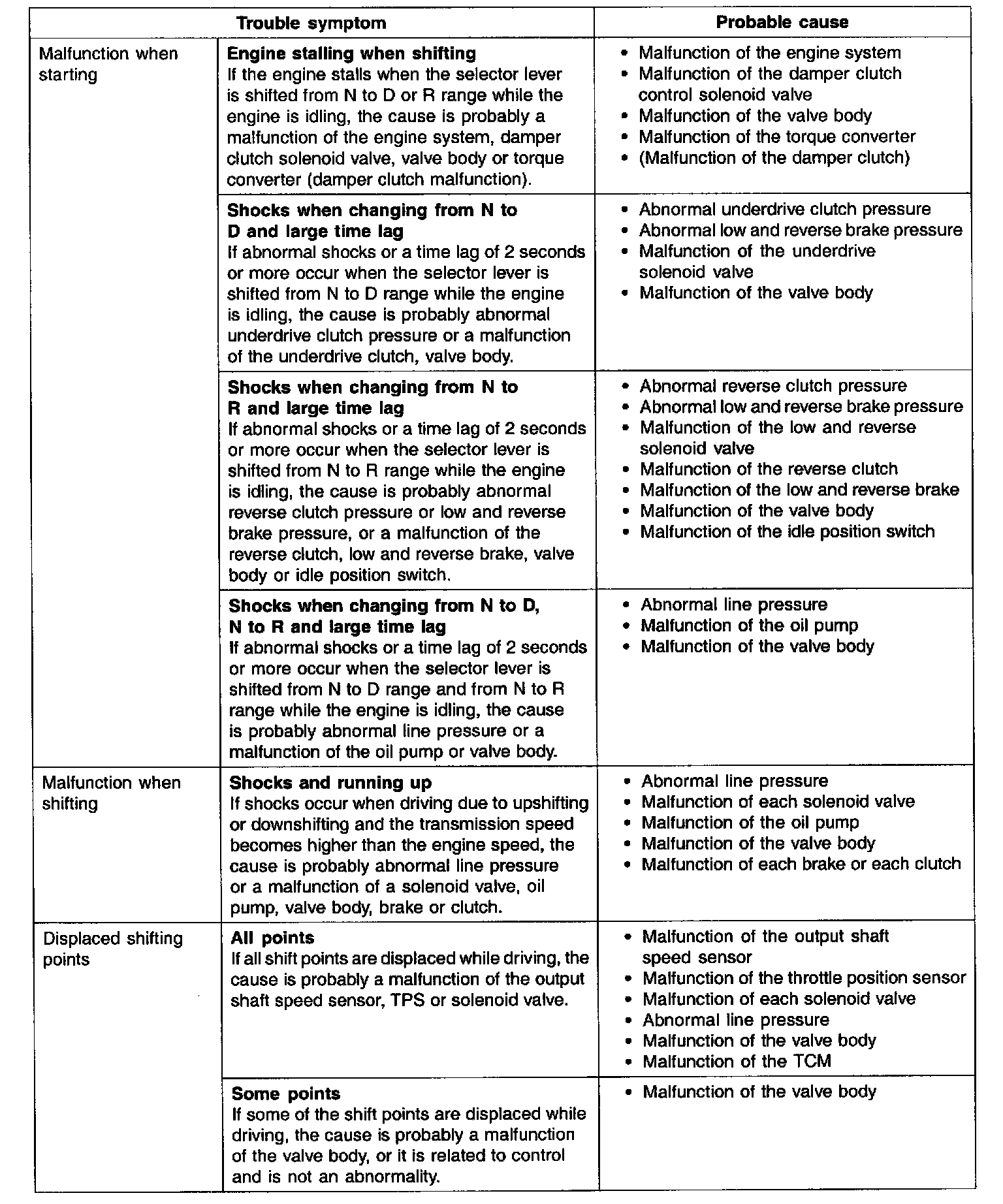

Part 1:

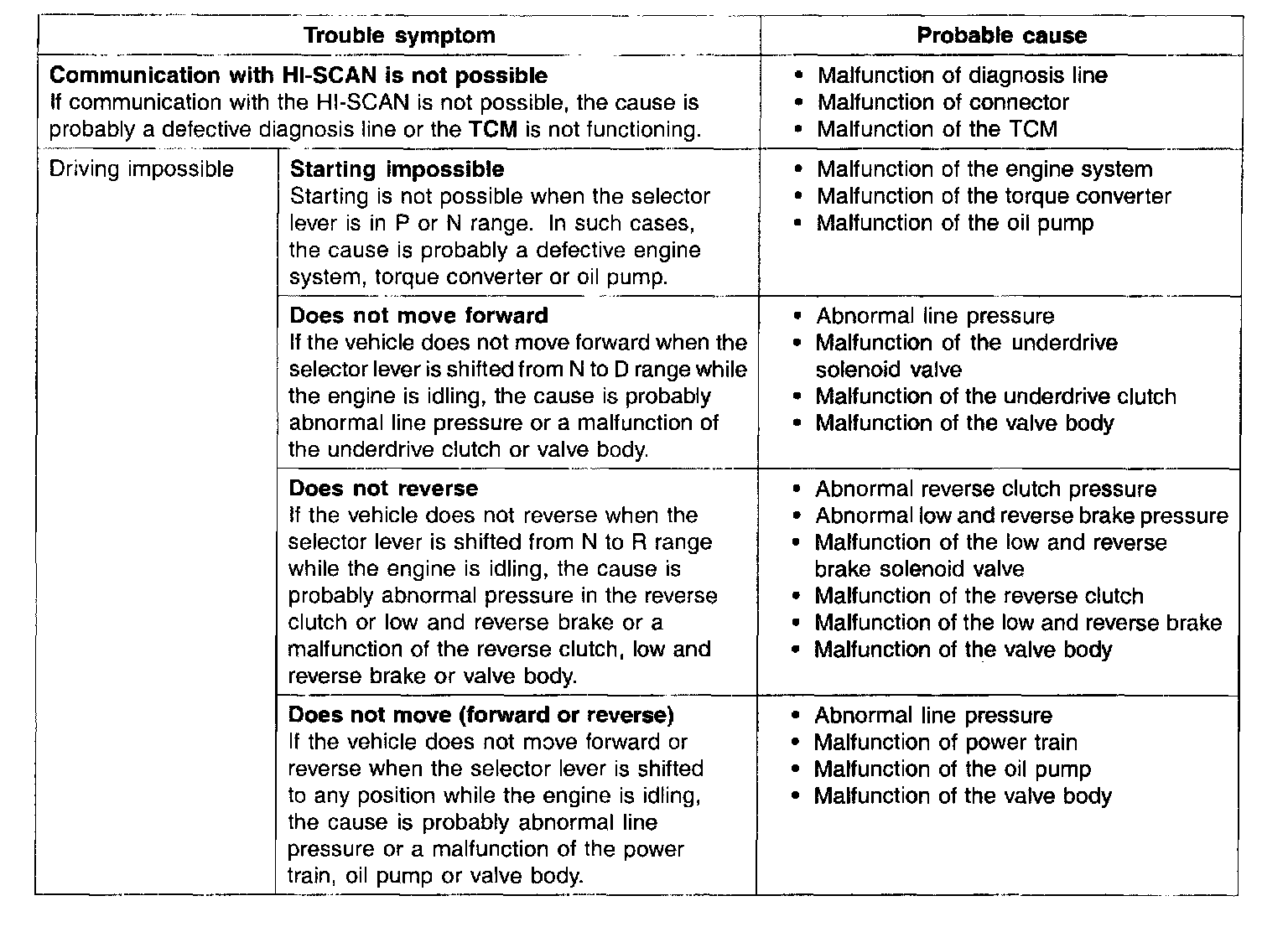

Part 2:

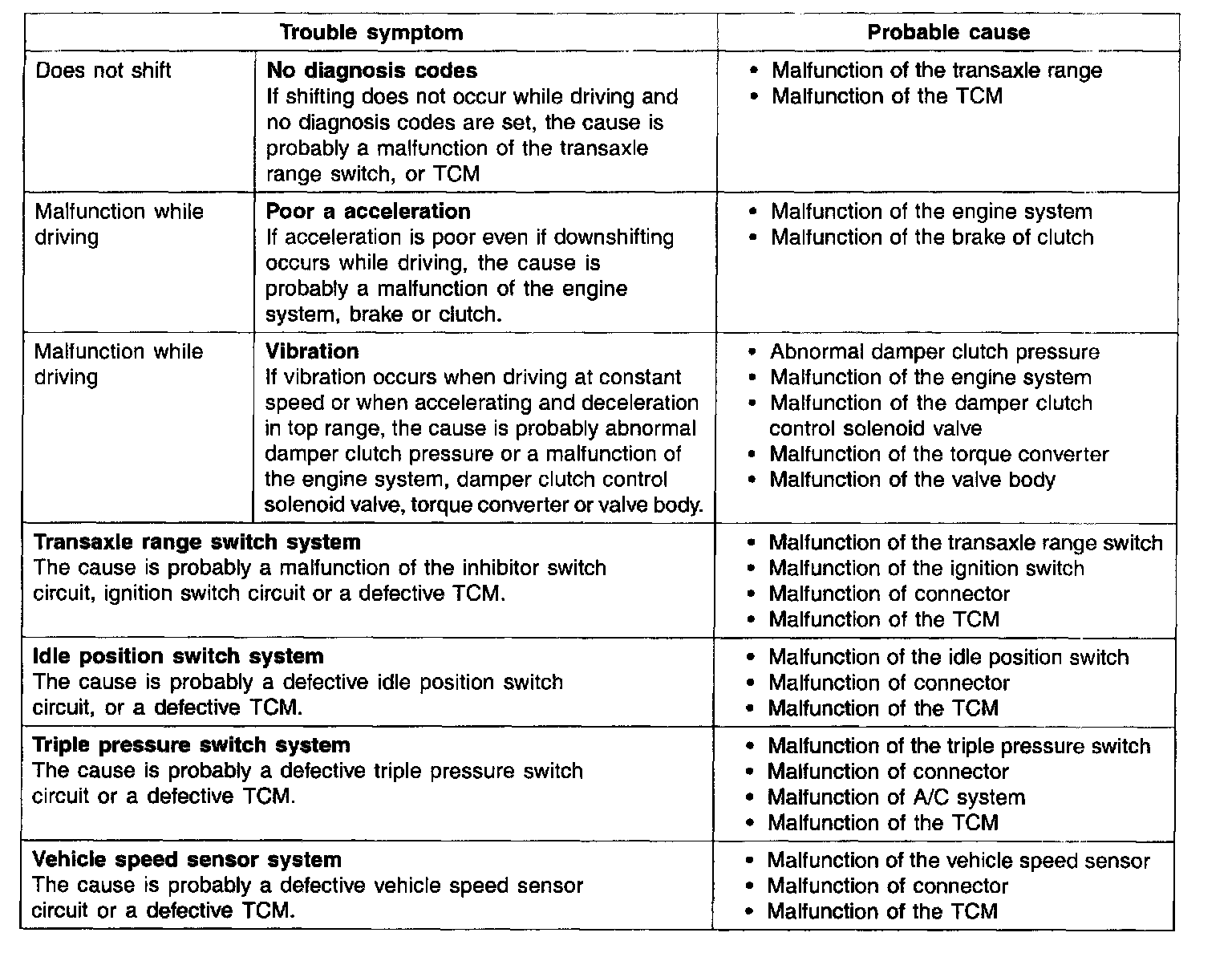

Part 3:






Inspection Chart For Trouble Symptoms
