Wheel Stud / Lug Nut: Service and Repair

TIGHTENING WHEEL NUT





1. Tightening torque.
Specified torque 90-110 Nm (900-1100 kgf-cm, 66-81 ft. lbs.)

NOTE: When using an impact gun, ensure to use the correct tightening torque.

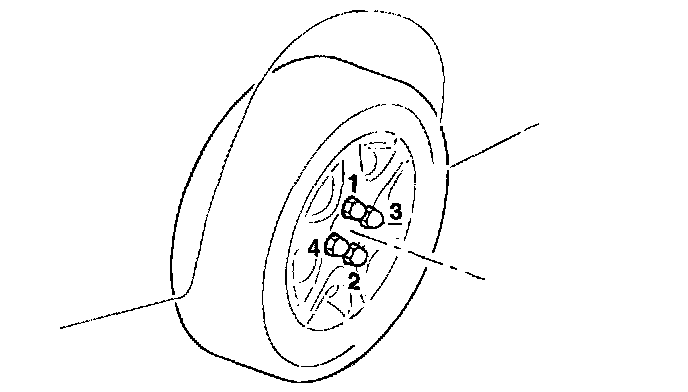

2. Tighten all wheel nuts in either order as shown in the illustration.
