Removal

REAR STRUT ASSEMBLY

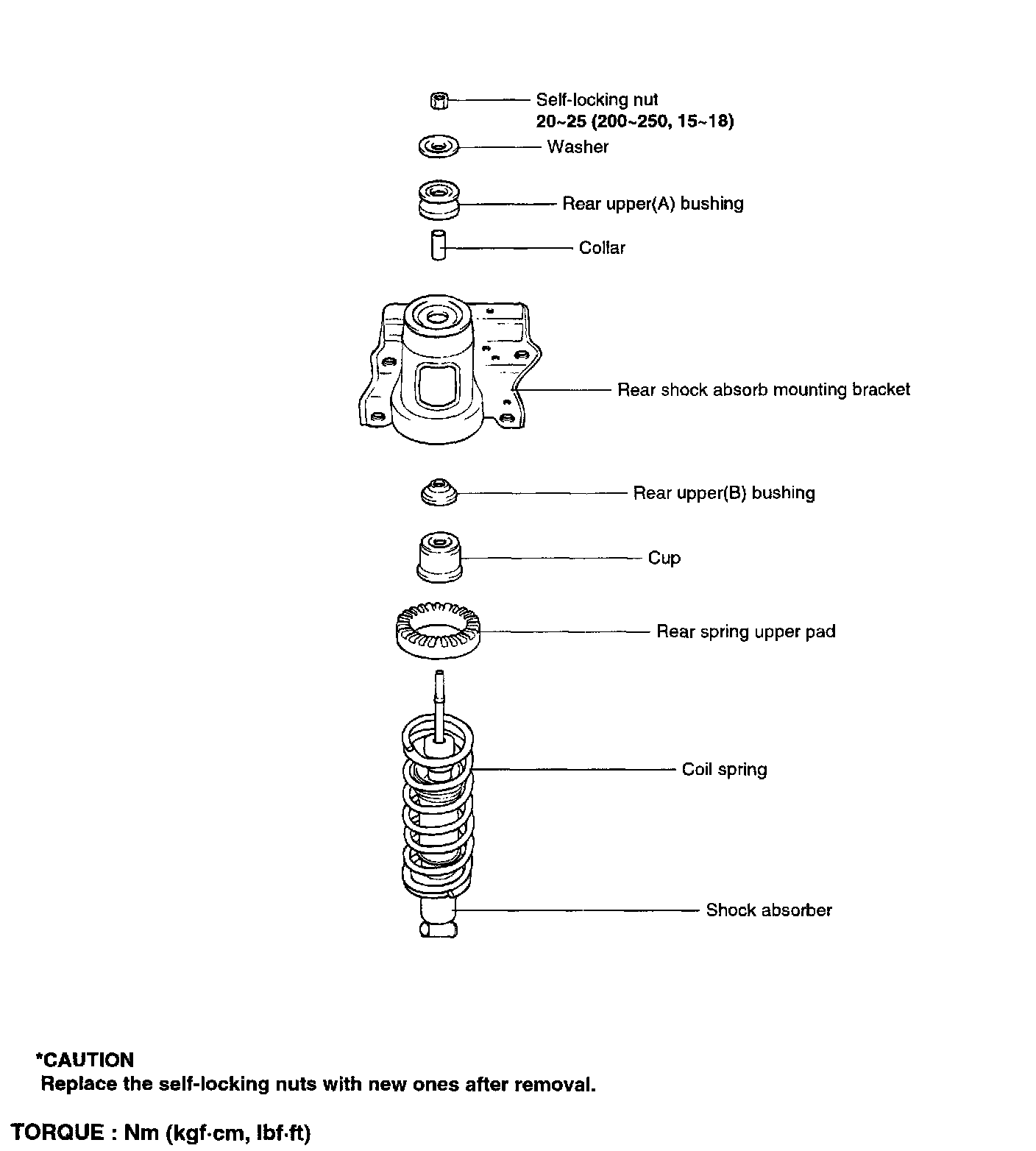

COMPONENTS

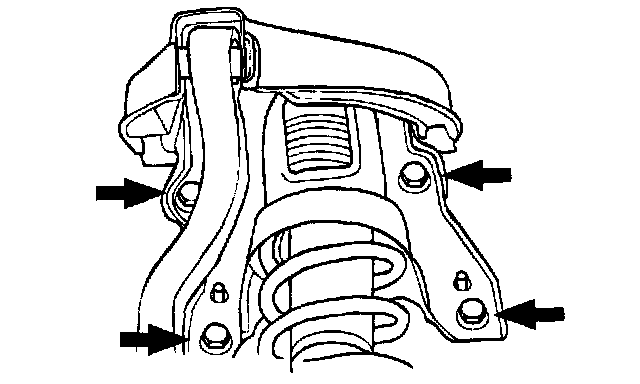

REMOVAL
1. Remove the wheel and tire.

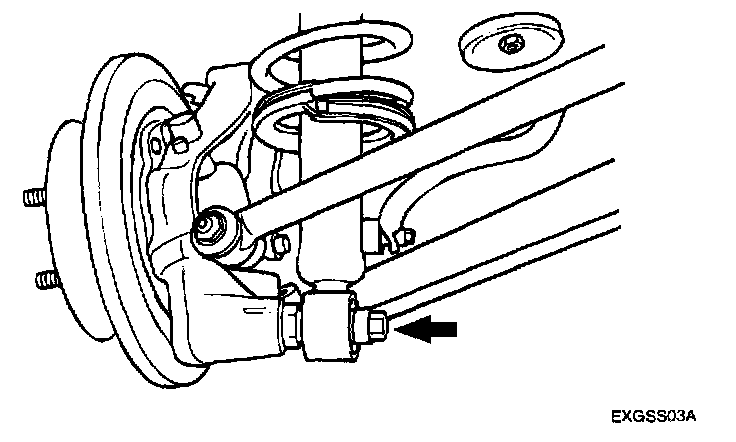

2. Remove the shock absorber lower mounting bolts.

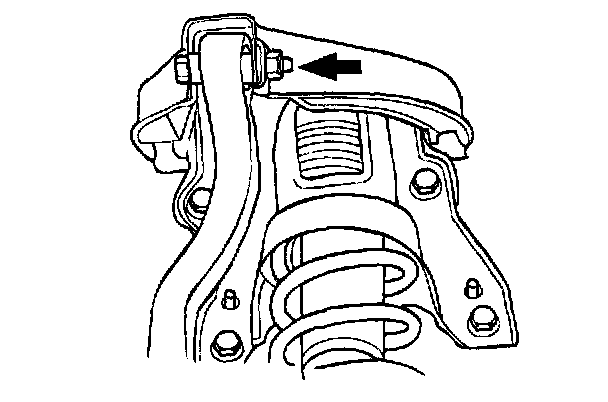

3. Remove the upper arm and rear carrier mounting bolt.





4. Remove the shock absorber mounting bracket.
