Disassembly

REAR STRUT ASSEMBLY

DISASSEMBLY

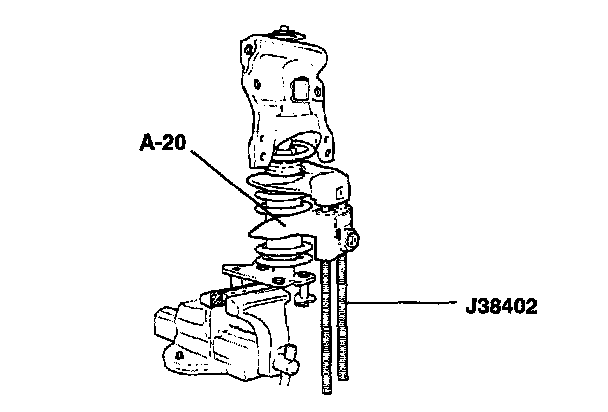

1. Using the special tools (J38402, A-20), compress the coil spring until there is only a little tension on the strut.

NOTE: Do not use an impact gun.

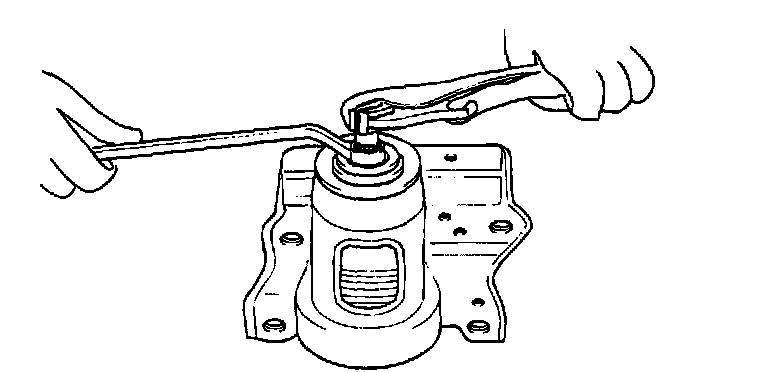

2. Remove the self-locking nut at the top end of the shock absorber.
3. Remove the shock absorber mounting bracket, the dust cover, and the spring upper pad.
4. Remove the special tool (J38402, A-20), and then remove the coil spring.
