Removal

FRONT STRUT ASSEMBLY

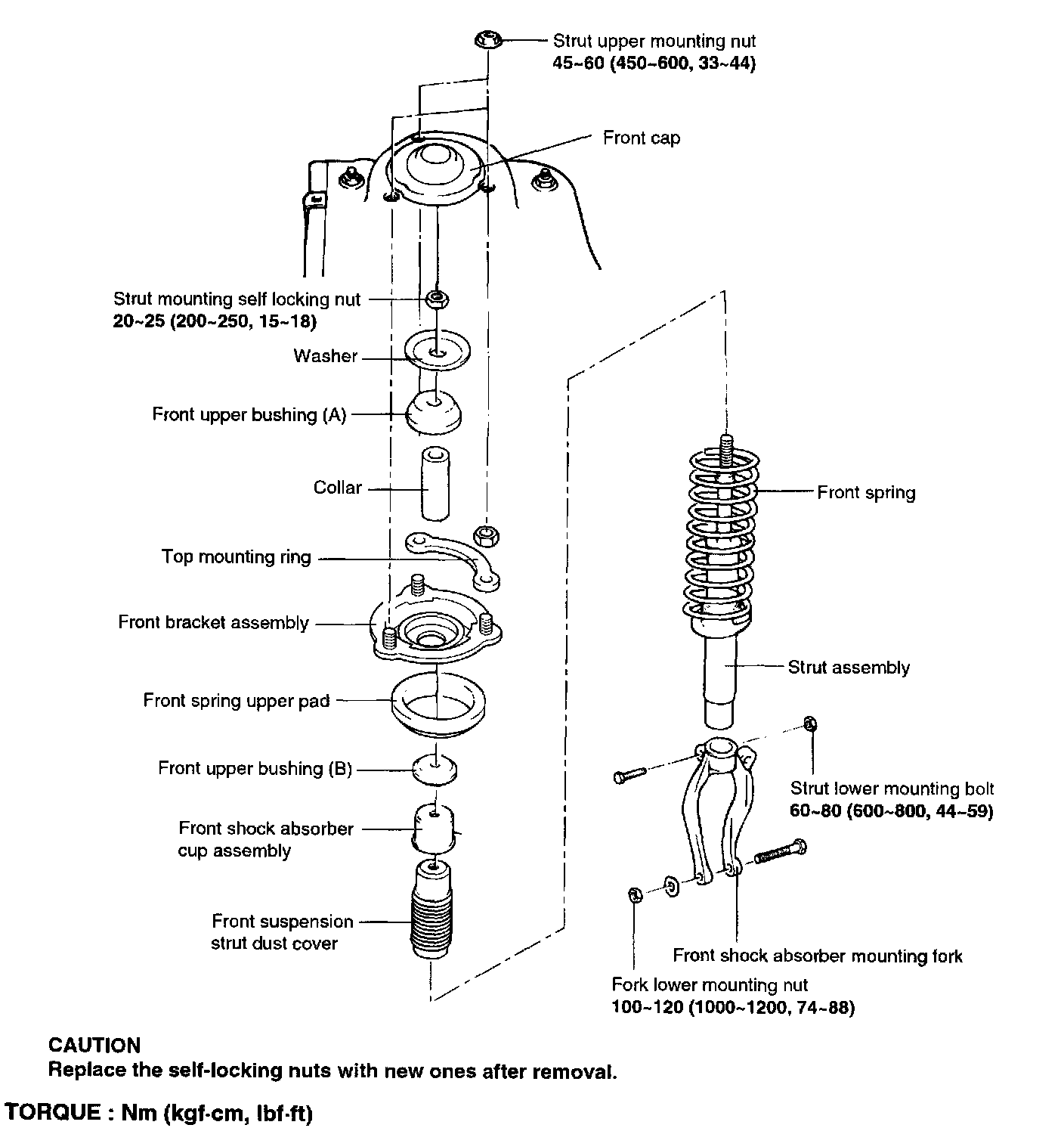

COMPONENTS

REMOVAL
1. Remove the front wheel.

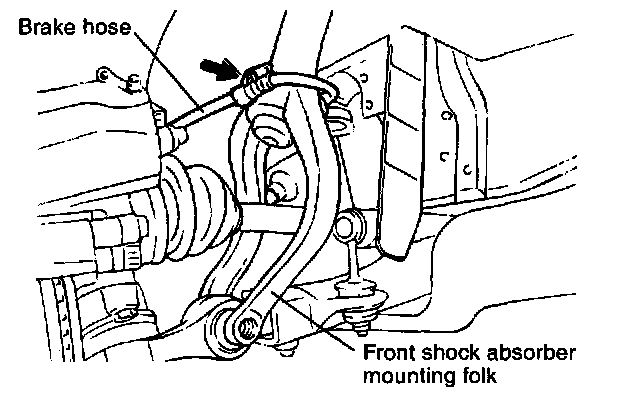

2. Detach the brake hose from the front shock absorber mounting fork.

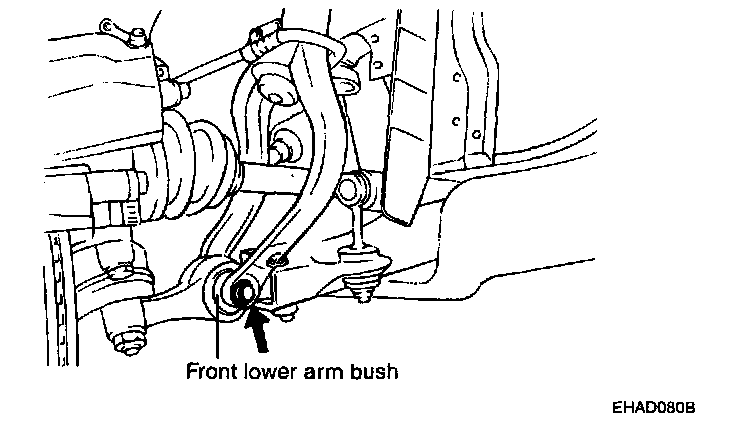

3. Remove the fork lower mounting bolt from the front lower arm bush.

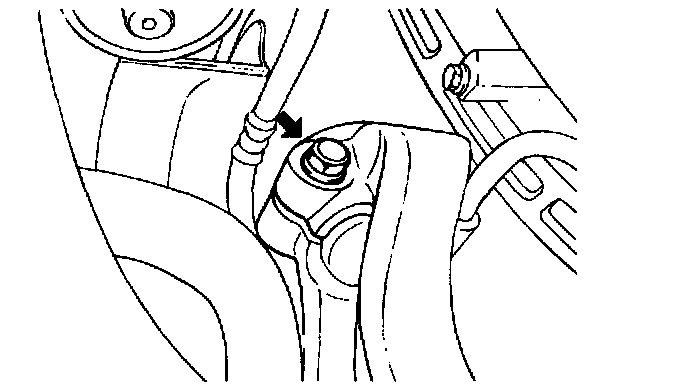

4. Remove the strut lower mounting bolt then remove the fork from the strut assembly.

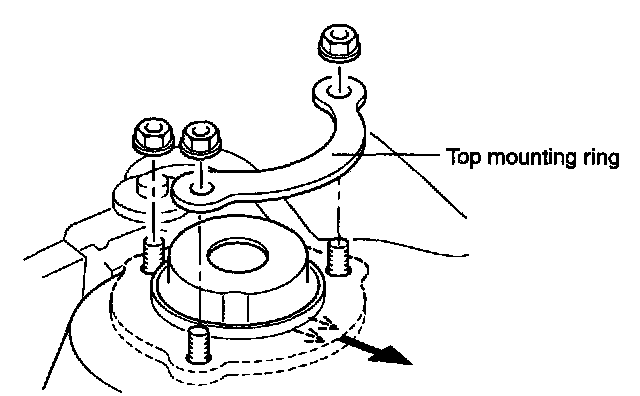

5. Remove the strut upper mounting nuts (3), the front cap and top mounting ring.
6. While pushing the axle assembly upward remove the strut assembly.
