Installation

FRONT STRUT ASSEMBLY

INSTALLATION

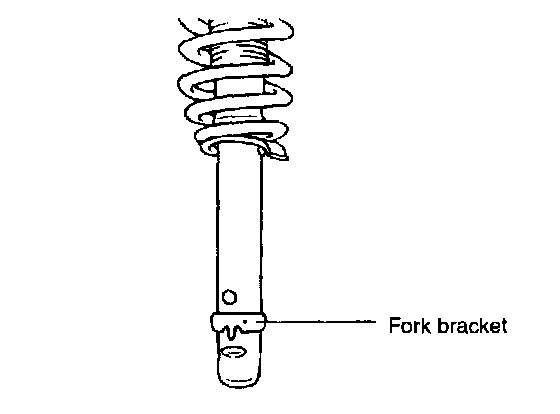

1. Place the fork bracket of the strut assembly to the inside of the vehicle, then install the strut assembly by tightening the strut upper mounting nuts (3) and top mounting ring.

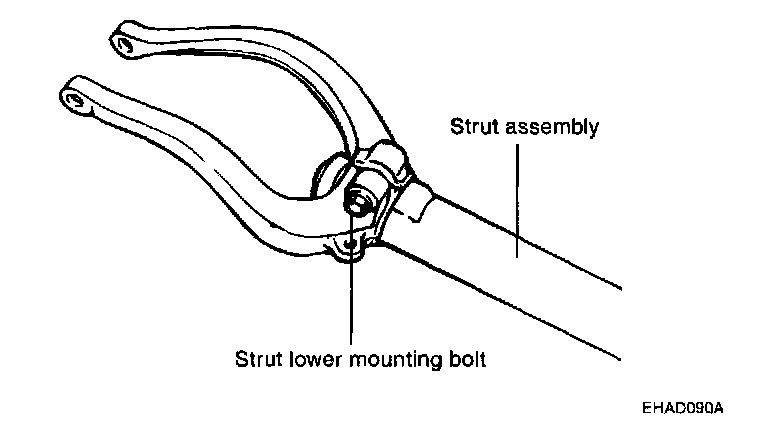

2. Install the fork to the strut assembly by tightening the strut lower mounting bolt.
3. Install the brake hose.
4. Install the wheel and tire.
5. After installation, check the front wheel alignment.
