Removal

FRONT UPPER ARM

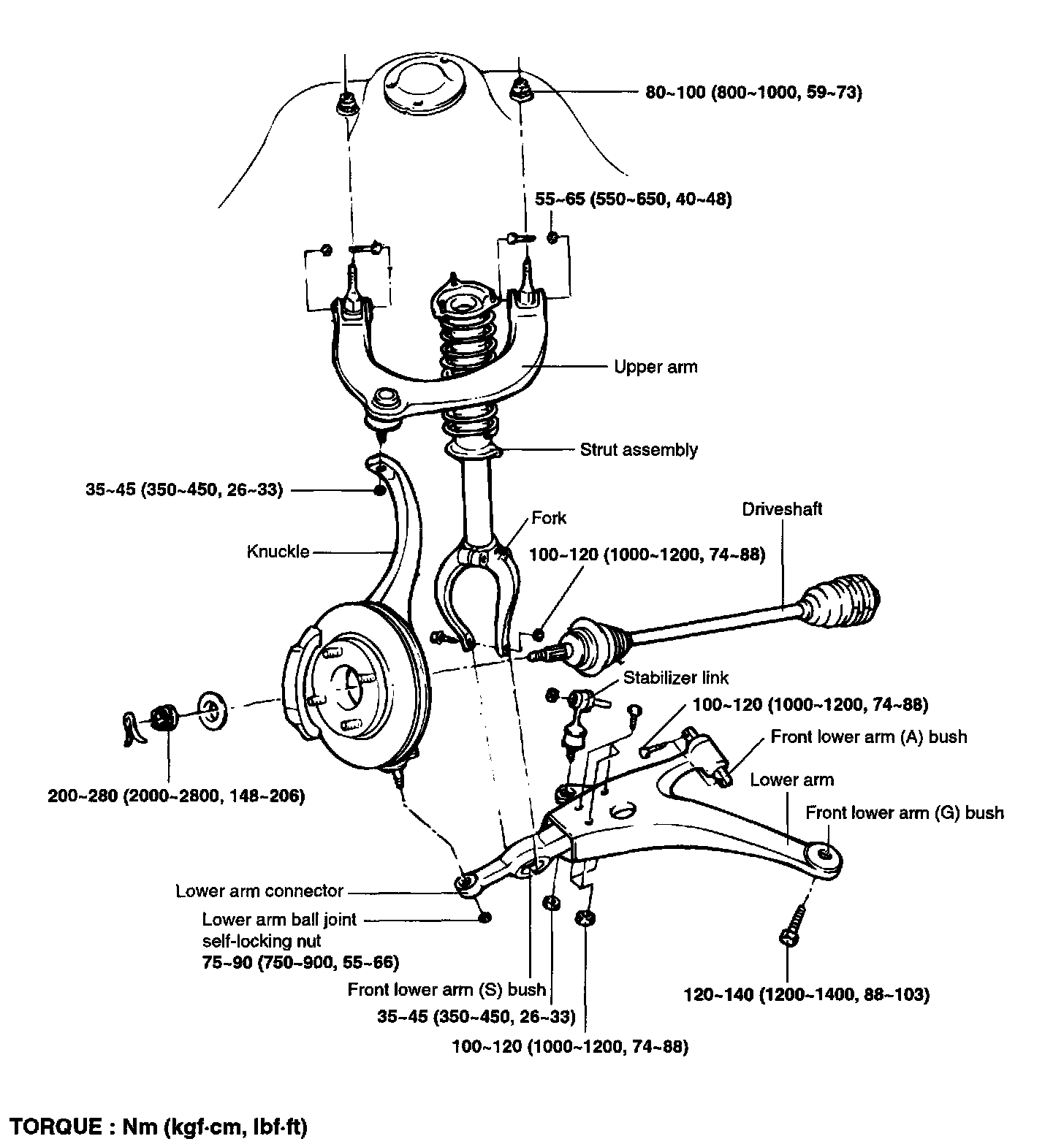

COMPONENTS

REMOVAL
1. Remove the wheel and tire.
2. Loosen the ball joint nut, but do not remove it.

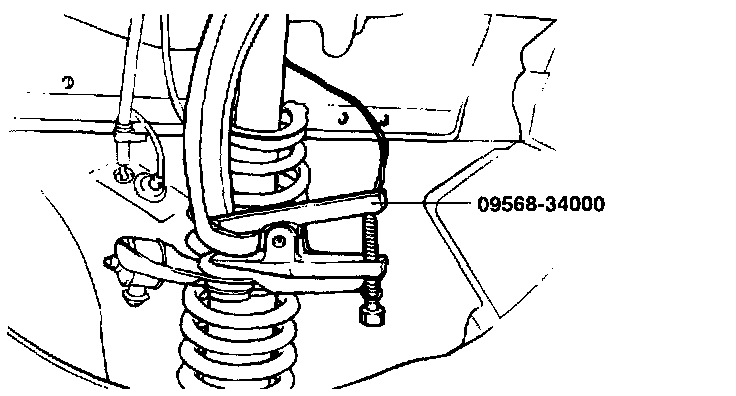

3. Using the special tool (09568-3400), disconnect the upper arm ball joint from the knuckle.

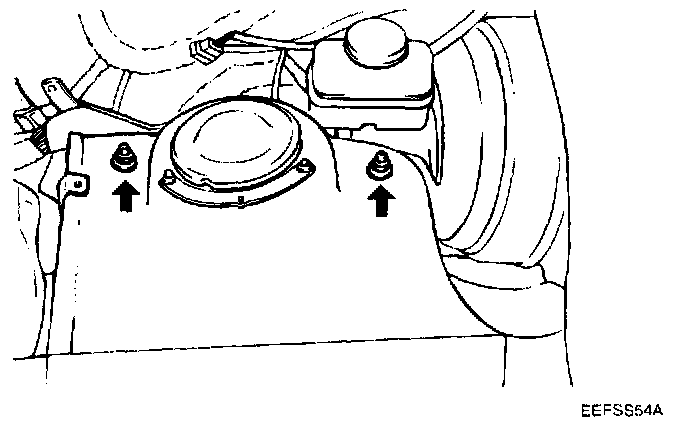

4. Remove the 2 nuts from the wheel house panel and then remove the upper arm assembly.

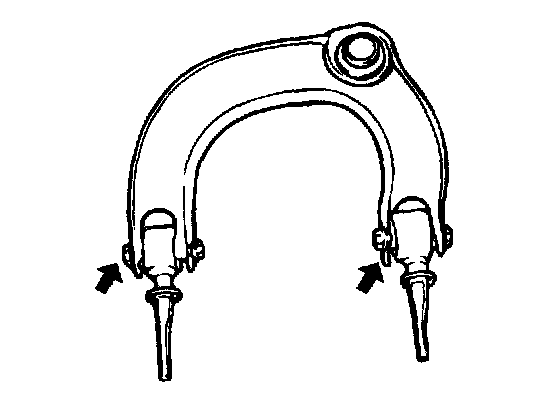

5. Remove the upper arm shaft.
