Reassembly

FRONT LOWER ARM

REASSEMBLY

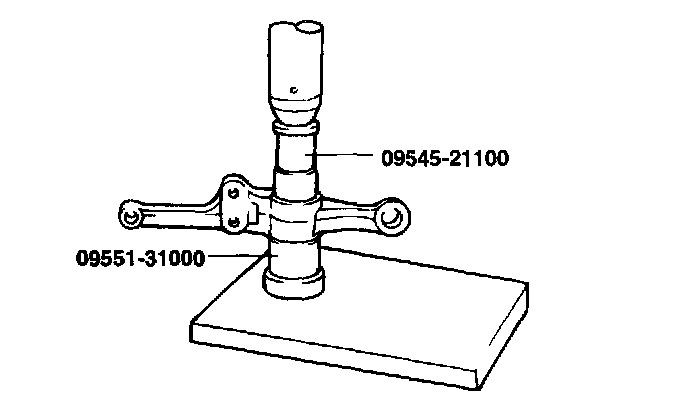

1. Using the special tools (09545-21100, 09551-31000), press-fit the front lower arm (S) bush.

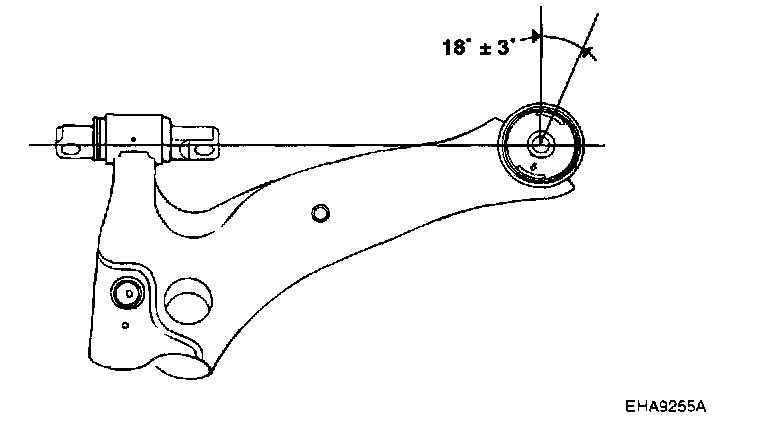

2. Align the lower arm (G) bush as the angle indicated in the illustration.





3. Using the special tool (09624-34000), press-fit the lower arm (G) bush.
4. Install the connector to the lower arm assembly.
