Installation

FRONT LOWER ARM

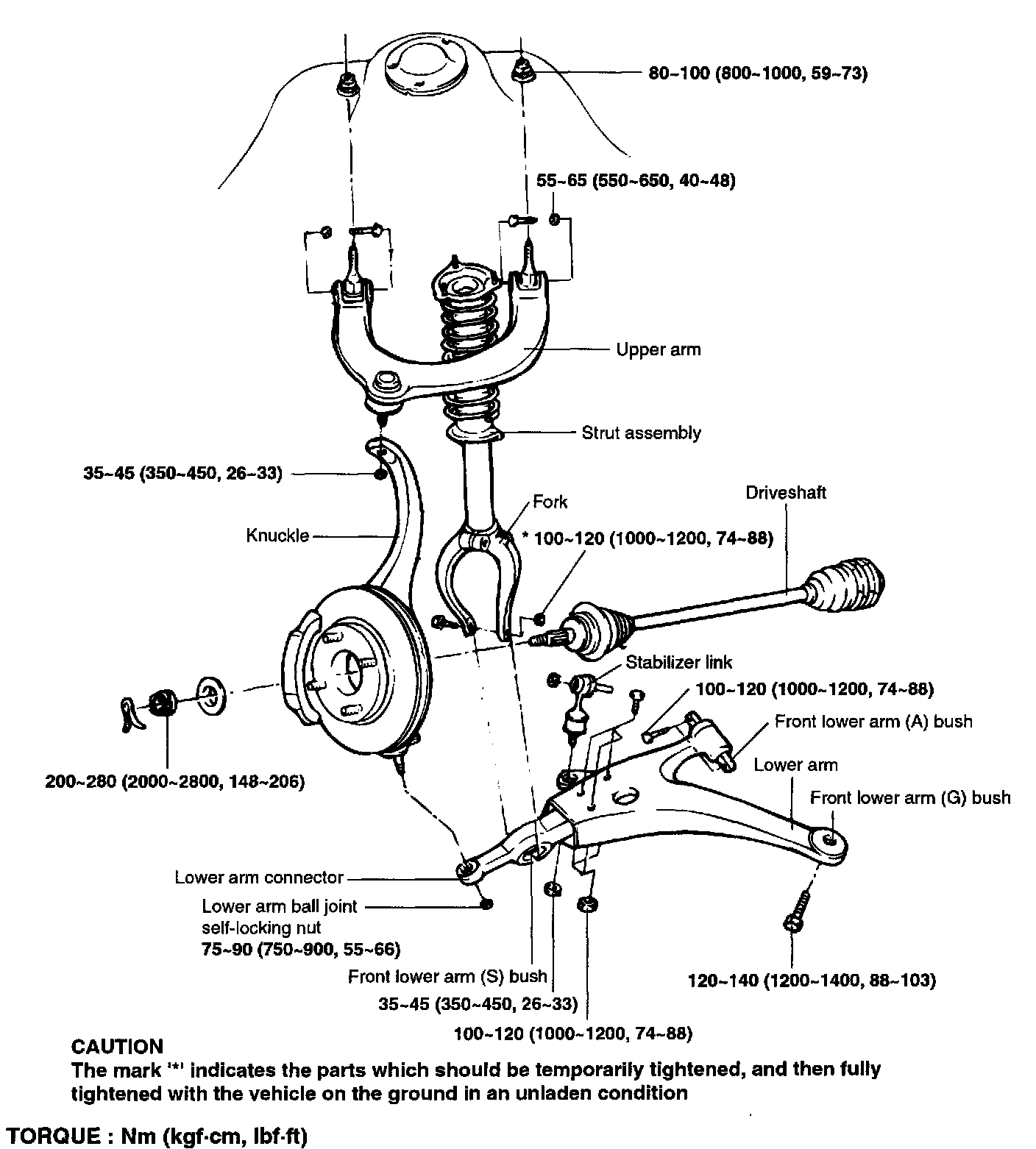

COMPONENTS

INSTALLATION

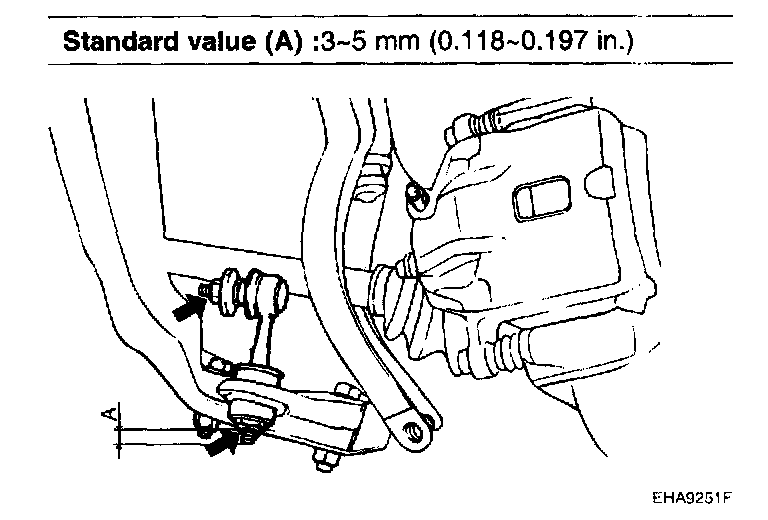

1. Install the stabilizer link so that the distance (A) is at the standard value.
2. Installation is in the reverse order of removal.
3. After installation, check the front wheel alignment.
