Power Steering Pressure Control Valve: Service and Repair

REMOVAL AND INSTALLATION

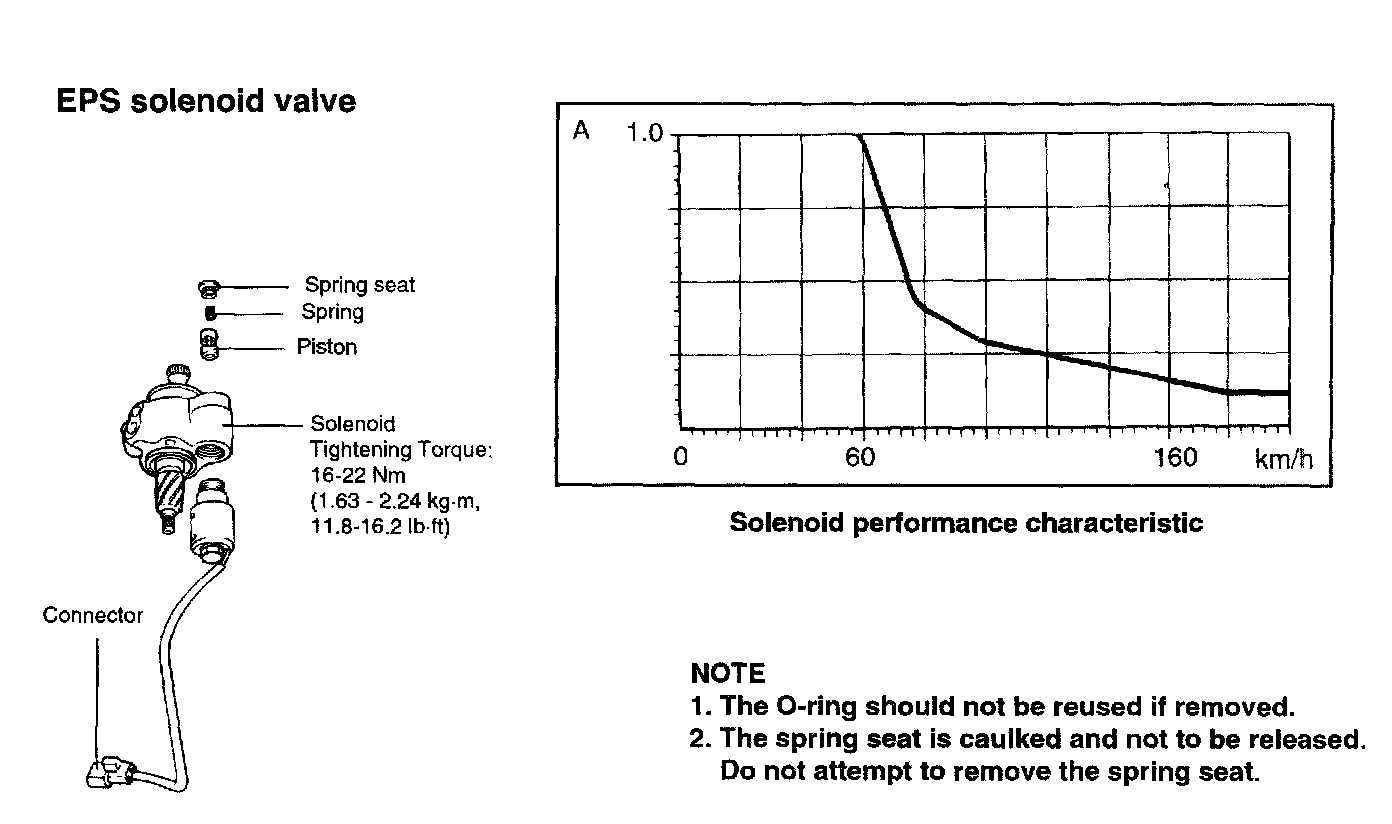

The removal and installation procedure is the same as that of conventional power steering system except for the solenoid valve components and EPS control module. Refer to the image.
