Rear Seat Belt

REAR SEAT BELT

REMOVAL

1. Remove the rear seat cushion, rear seat back and rear package tray trim.

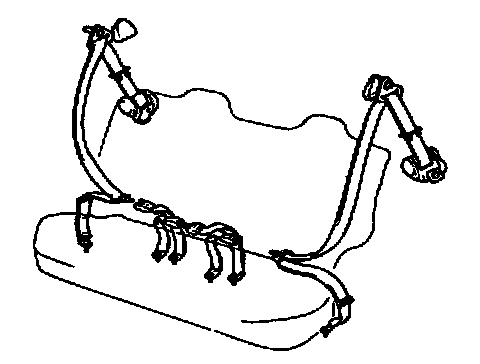

2. Remove the rear seat belt buckle and retractor.






Tightening torque: 40-55 Nm (400-550 kg.cm, 29-40 lb.ft)

3. Installation is the reverse of removal.
