Front Seat Belt

REMOVAL

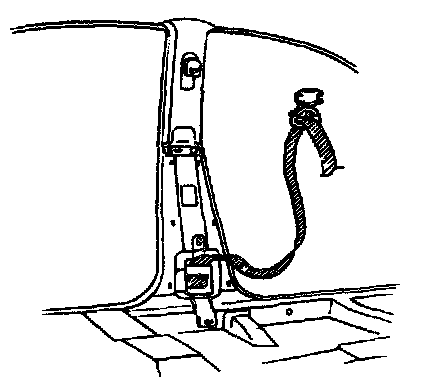

1. Remove the lower anchor cover and loosen the lower anchor bolt.






Tightening torque: 40-55 Nm (400-550 kg.cm, 29-40 lb.ft)

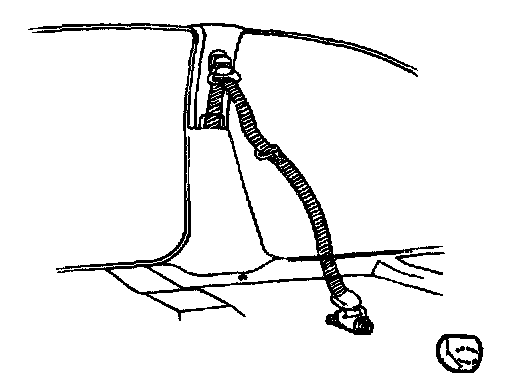

2. Remove the center pillar trim and upper anchor bolt.






Tightening torque: 40-55 Nm (400-550 kg.cm, 29-40 lb.ft)

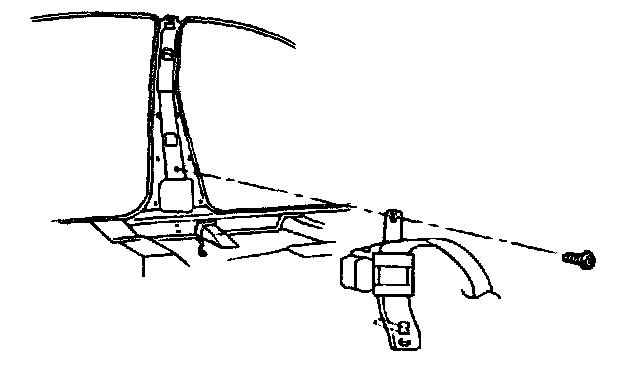

3. Remove the front seat belt retractor.






4. Installation is the reverse of removal.
