Pinout Values and Diagnostic Parameters

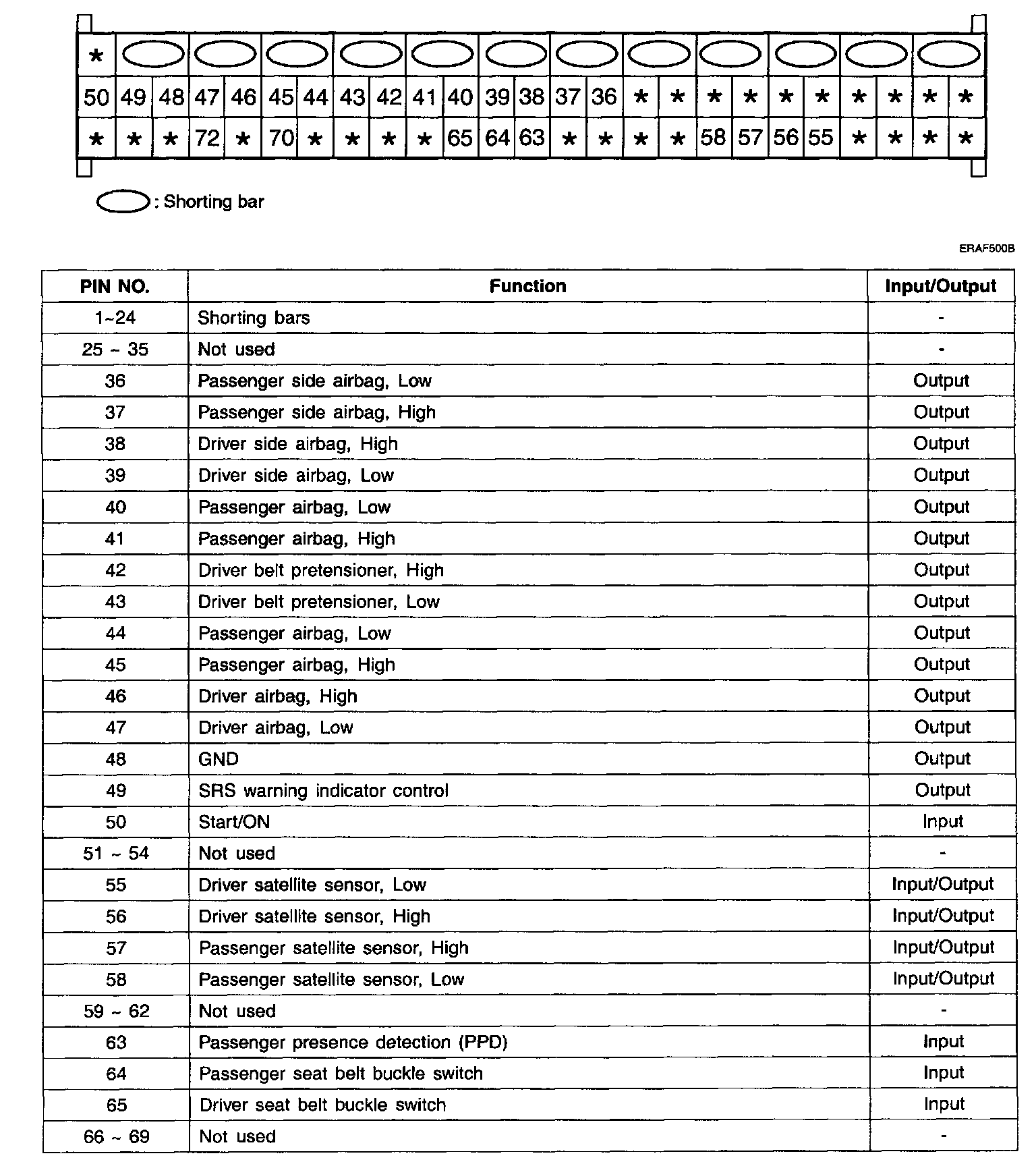

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 1 - 69:

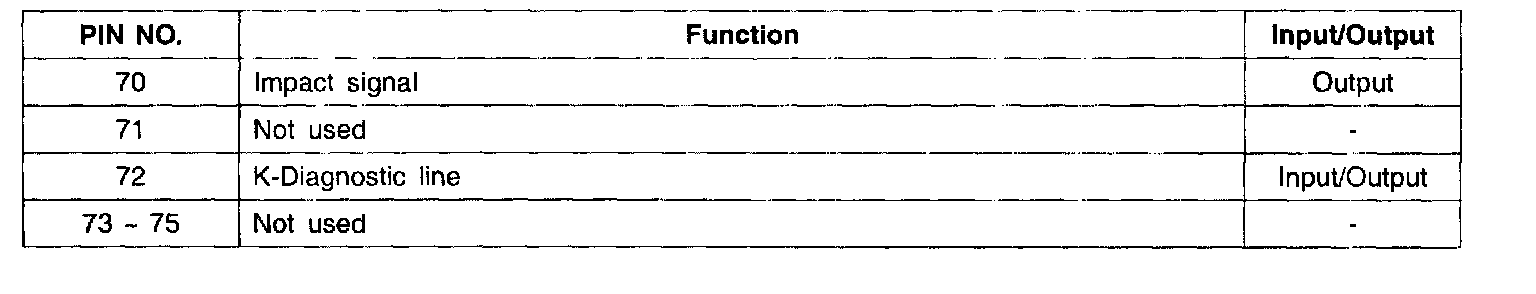

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 70 - 75:
