Refueling Control Valve: Testing and Inspection

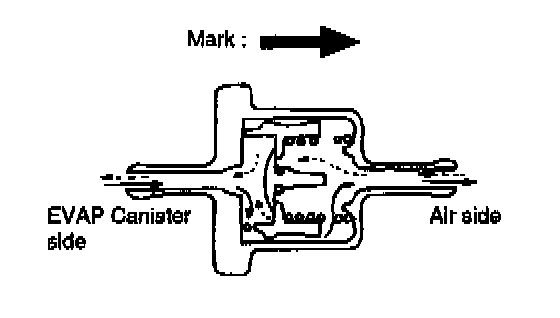

Two-Way Valve






1. Inspect that air flows as shown.
2. Check to connect correctly such as the arrow mark on the valve.
