Canister Close Valve

CANISTER CLOSE VALVE (CCV)
The canister close valve is an ON/OFF type which controls the inner pressure of fuel tank caused by fuel evaporation. It is used to close the evaporative system and to observe tank pressure respectively with the fuel tank pressure sensor.

Circuit Diagram (Canister Close Valve):

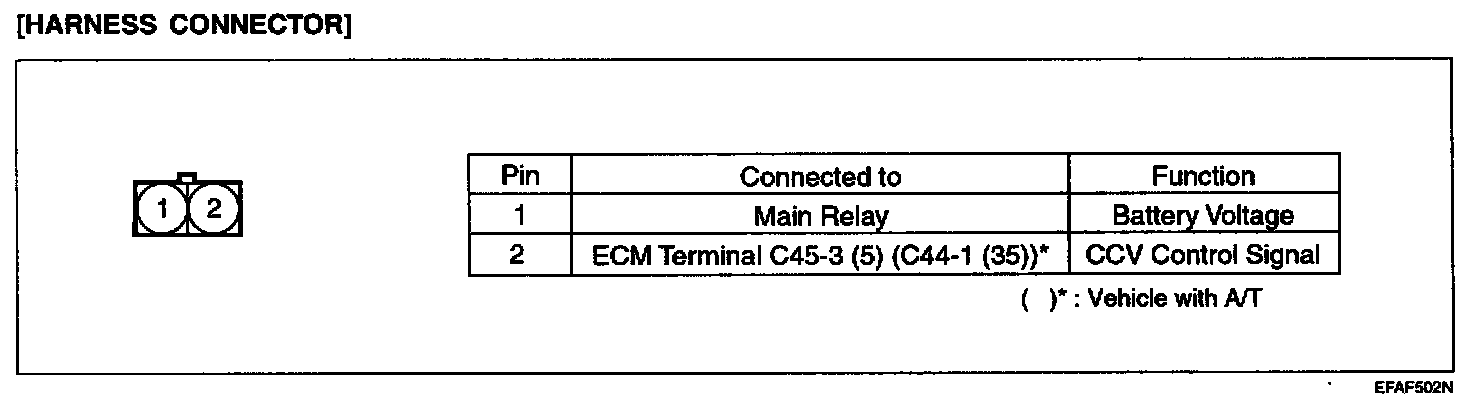

Harness Connector:

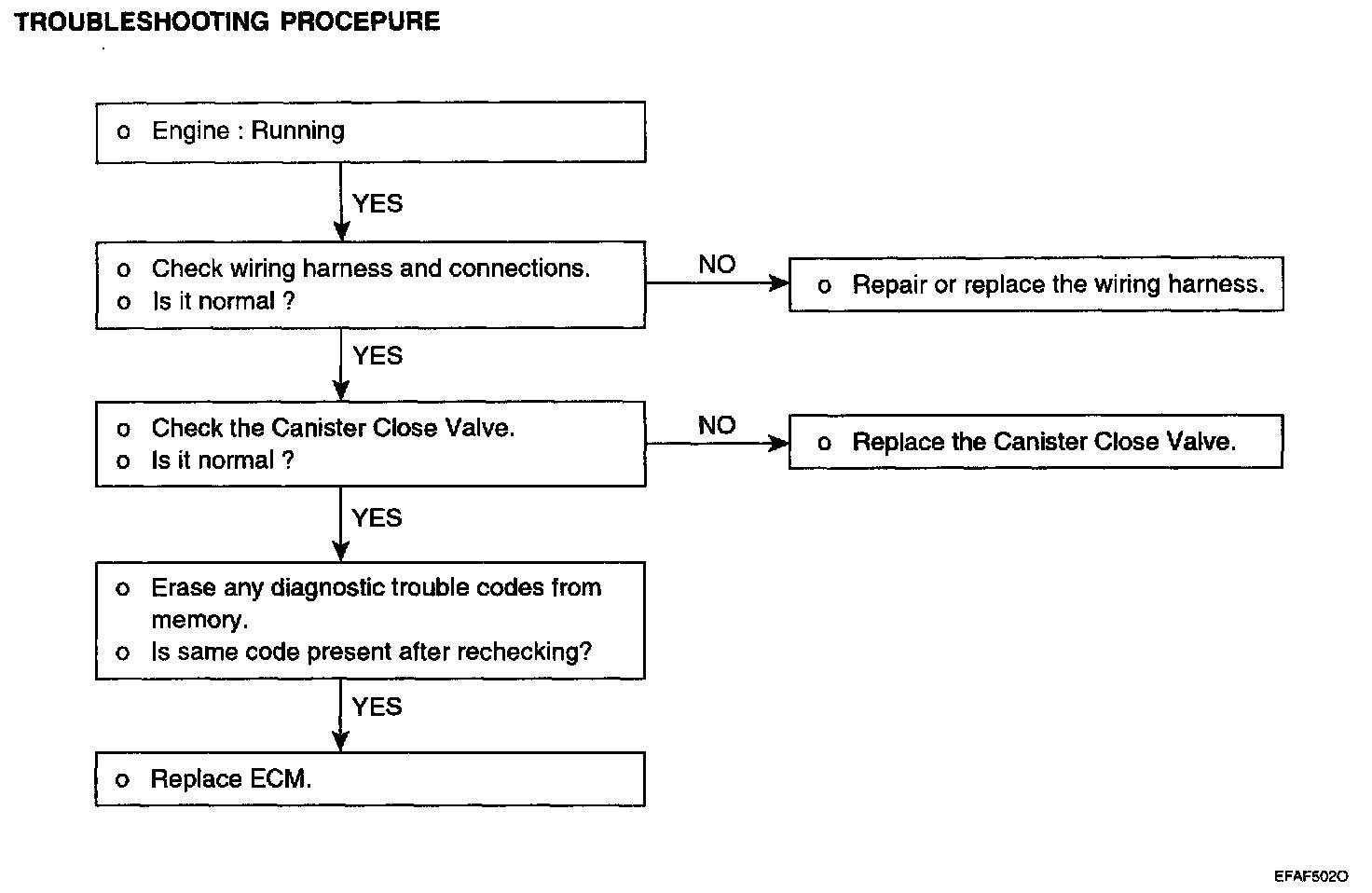

Troubleshooting Procedure:

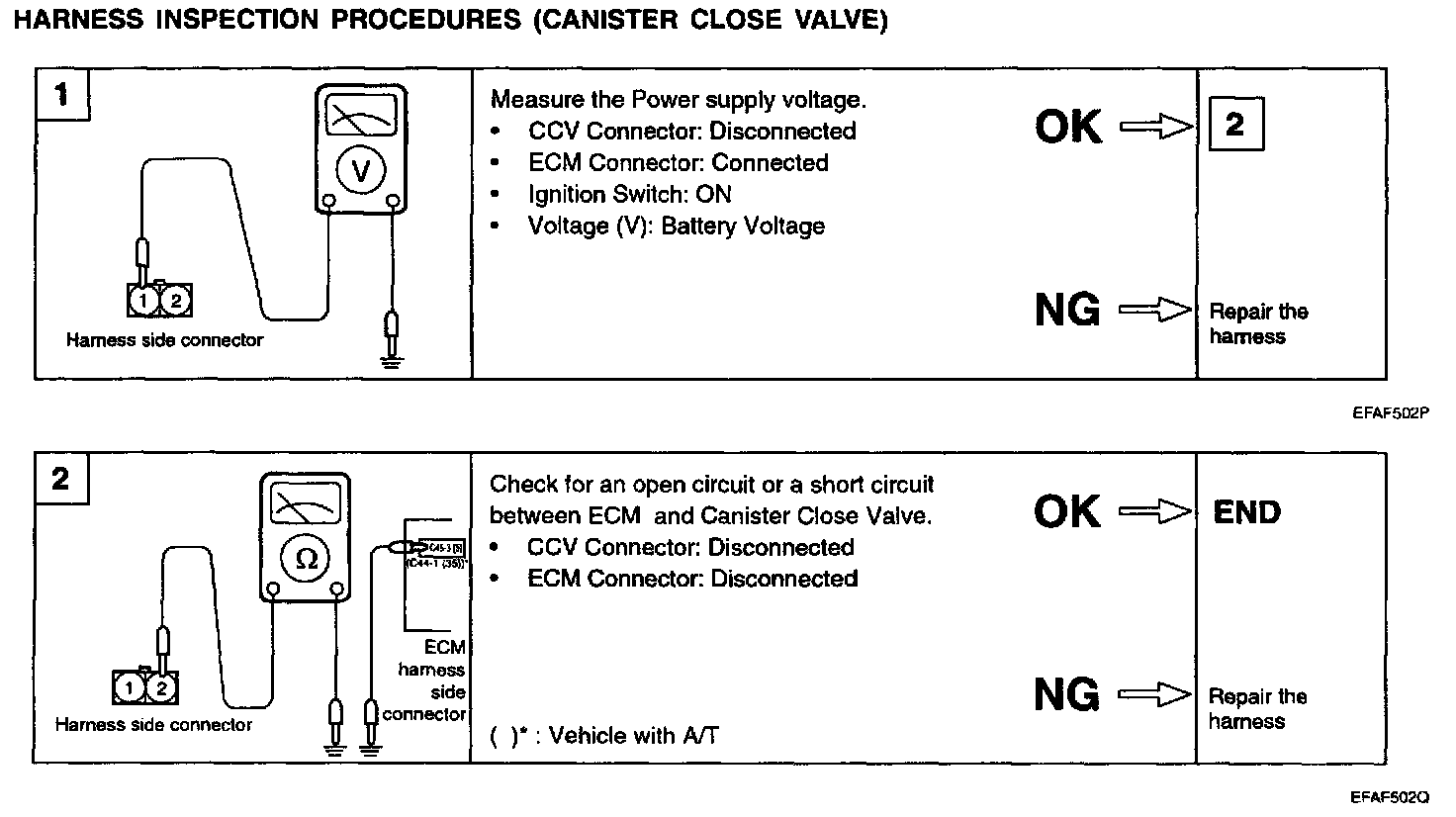

Harness Inspection Procedures (Canister Close Valve):
