Tail Lamp: Service and Repair

REAR COMBINATION LAMP

1. Disconnect the negative battery terminal.

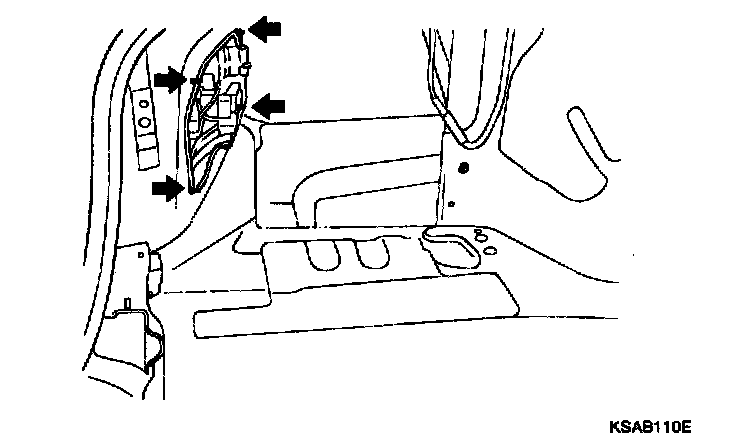

2. Remove the 4 nuts holding the rear combination lamp and disconnect the wire connectors.
3. Remove the rear combination lamp assembly.
4. Installation is the reverse of removal.
