Headlamp Relay: Testing and Inspection
HEAD LAMP RELAY1. Remove the headlamp relay from the relay box in the engine compartment.

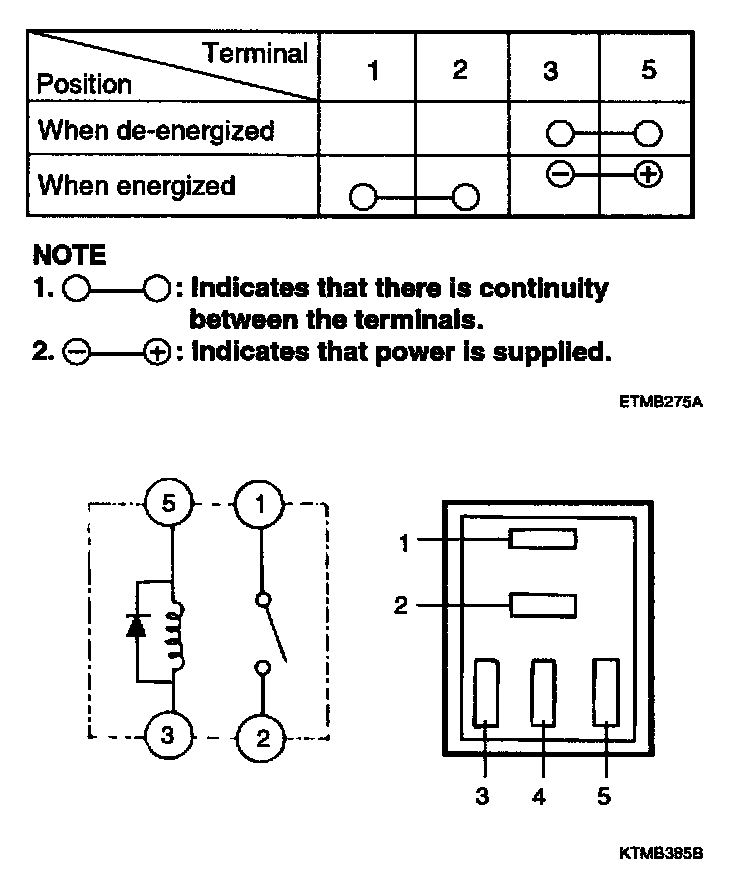

2. Check for continuity between terminals on the relay.
1. Remove the headlamp relay from the relay box in the engine compartment.
2. Check for continuity between terminals on the relay.
