Fog/Driving Lamp: Service and Repair

FRONT FOG LAMP

1. Disconnect the negative battery terminal.

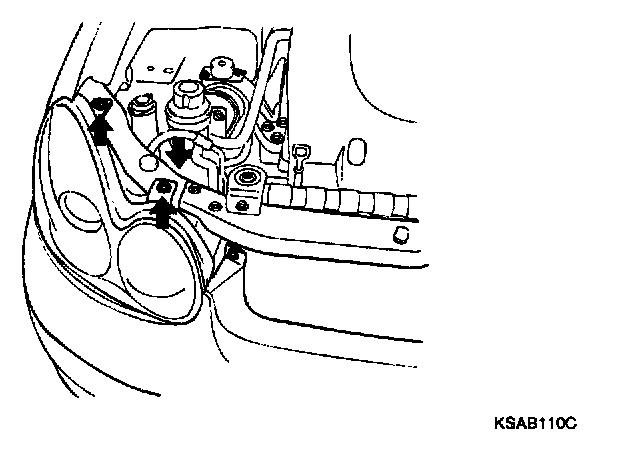

2. Remove the turn signal tamp and head lamp assembly.

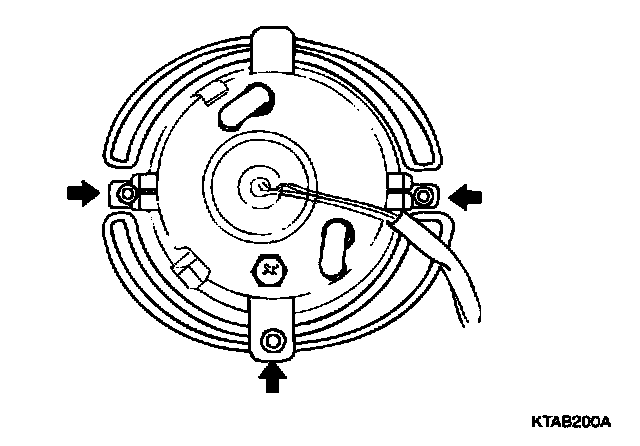

3. Remove the front bumper cover. Disconnect the wire connector and remove the front fog lamp.
4. Installation is the reverse of removal.
