Courtesy Lamp: Testing and Inspection

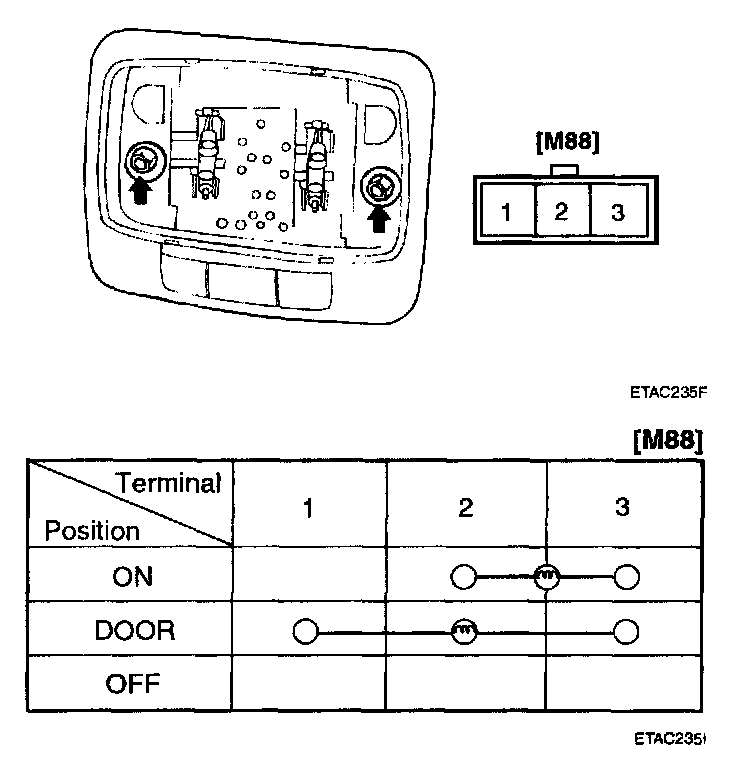

ROOM LAMP SWITCH




Remove the room lamp and check for continuity between terminals with the connector disconnected.
