Courtesy Lamp: Service and Repair

ROOM LAMP

1. Disconnect the negative battery terminal.
2. Using a flat-tip screwdriver detach the room lamp lens.

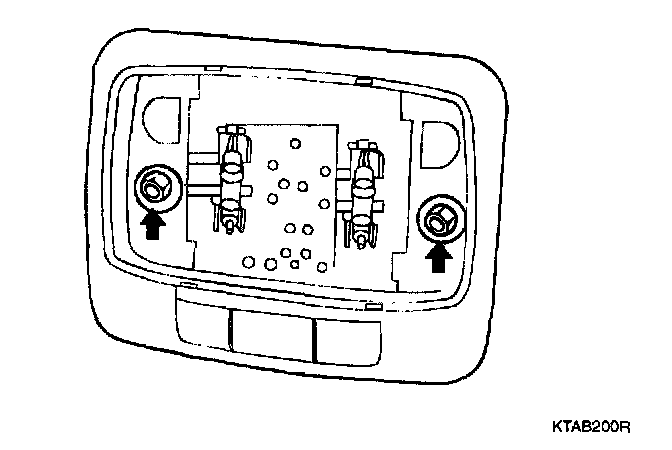

3. Detach the lamp assembly from the headliner after removing the 2 bolts.
4. Disconnect the connector from the root harness.
5. Installation is the reverse of removal.
