Center Mounted Brake Lamp: Service and Repair

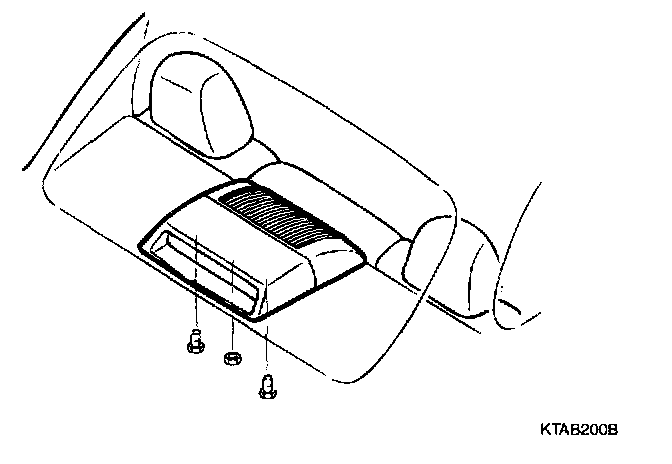

CENTER HIGH MOUNTED STOP LAMP

1. Disconnect the negative battery terminal.




2. Remove the two mounting nuts and disconnect the wire connector.
3. Remove the center high mounted stop lamp assembly.
4. Installation is the reverse of removal.
