Instrument Cluster / Carrier: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.

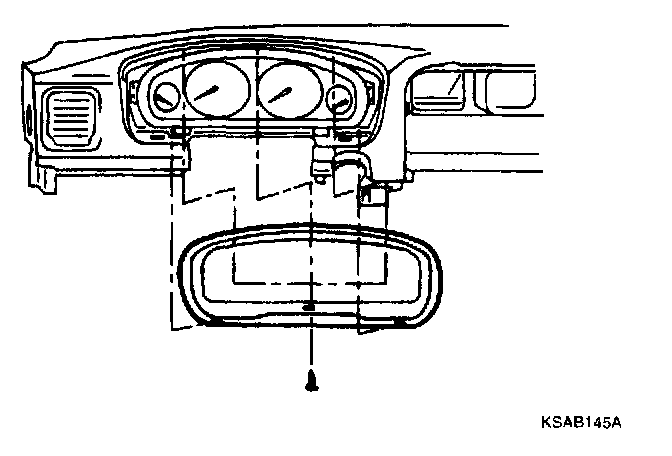

2. Remove the cluster facia panel after removing 5 screws.

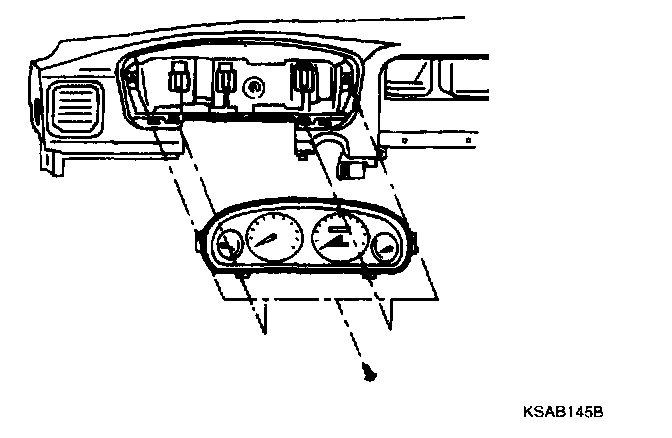

3. Remove the 4 screws holding the cluster and remove the instrument cluster.
4. Installation is the reverse of removal.
