Blower Motor Switch: Testing and Inspection

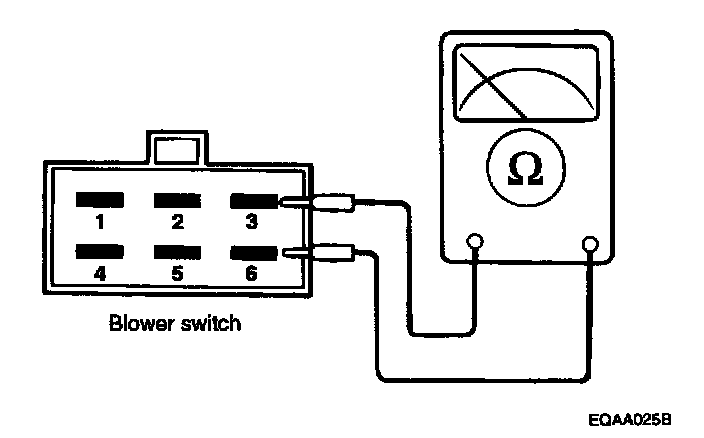

Blower Switch (Manual Temperature Control)

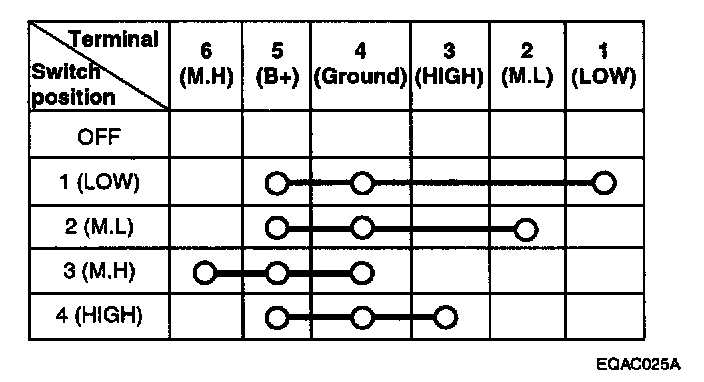

Check for continuity between terminals as shown below.






If continuity is not as specified, replace the control panel.

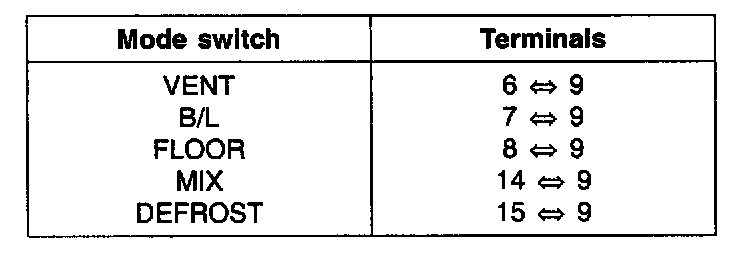

MODE CONTROL SWITCH & LT;ROTARY AND PUSH BUTTON TYPE ONLY>

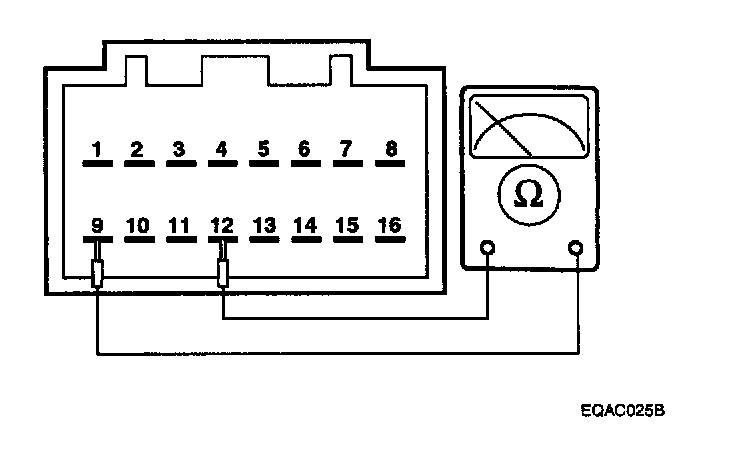

Check for continuity between terminals.

If continuity is not as specified, replace the control panel.

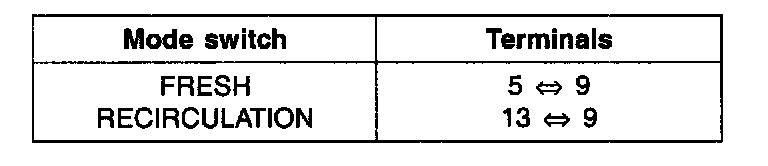

FRESH/RECIRCE BUTTON






Check for continuity between terminals.






If continuity is not as specified, replace the control panel.
