Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Diagrams

Housing Assembly HVAC: Diagrams

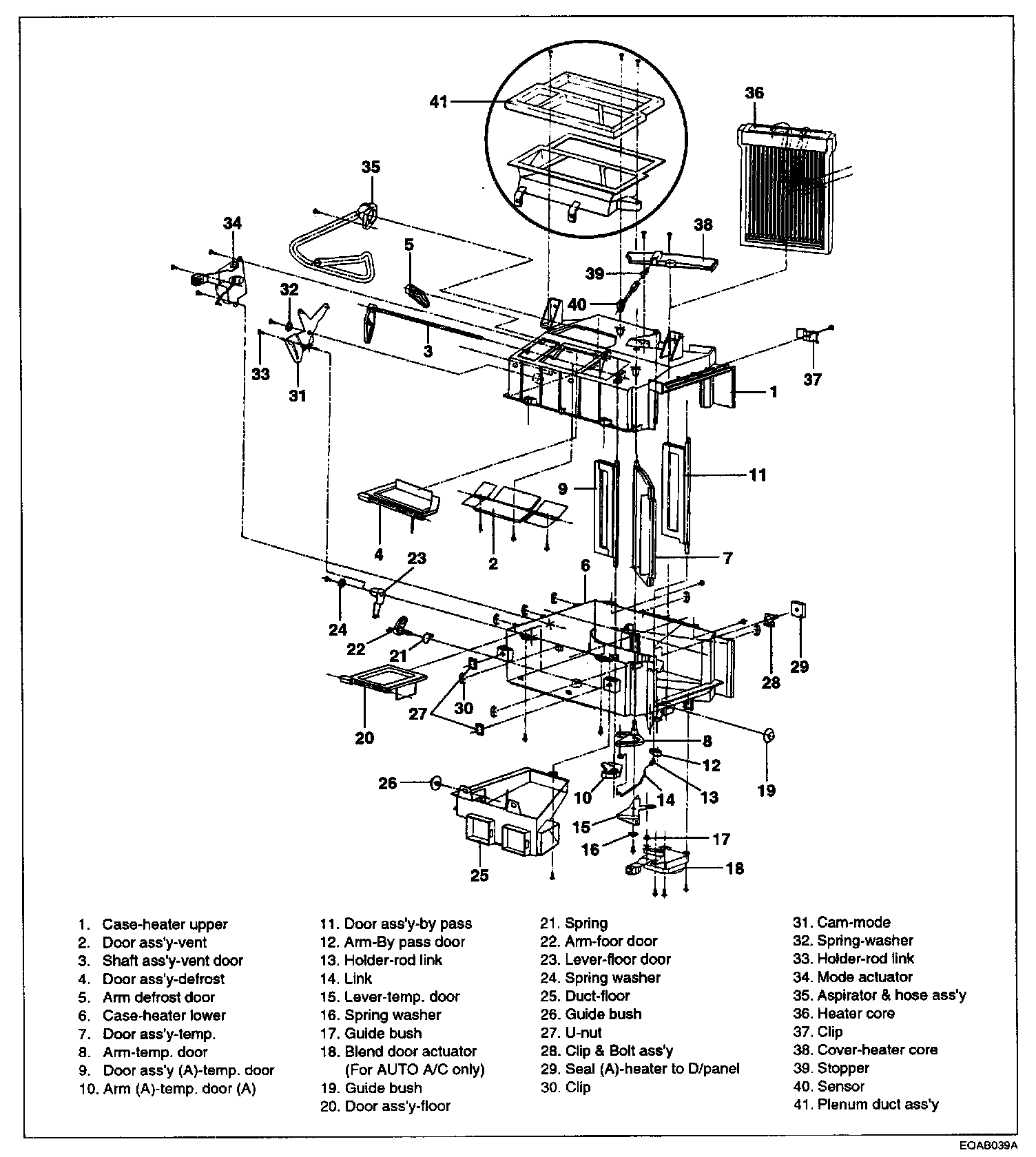

Heater Unit:
