Blower Motor Resistor: Testing and Inspection

Blower Resistor (Manual Temperature Control)

Inspection

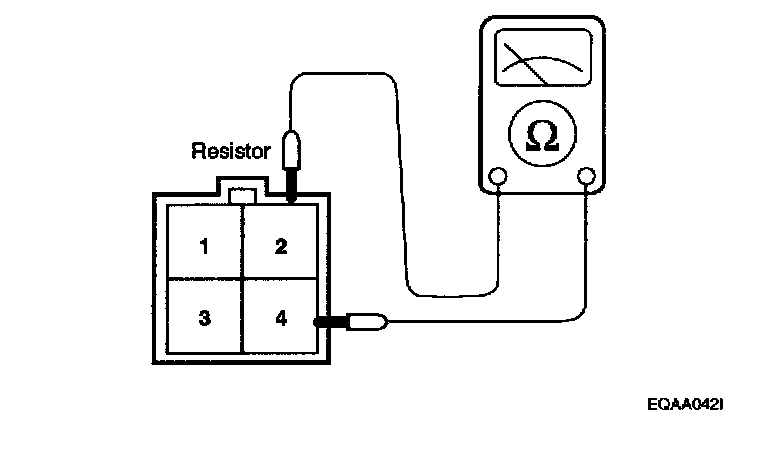

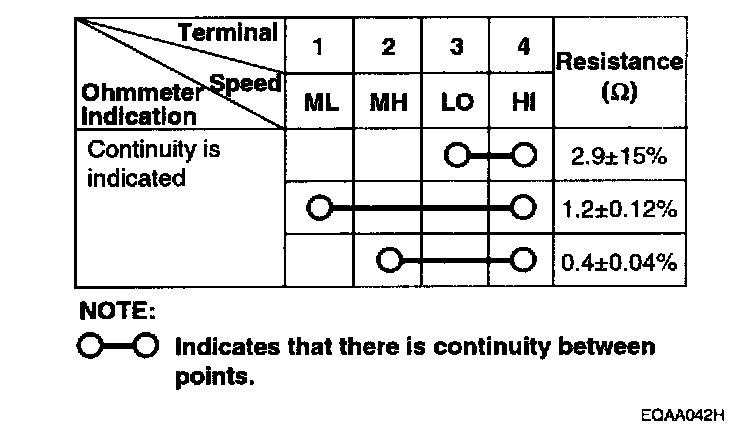

Measure terminal-to-terminal resistance of the blower resistor. If measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor).

The Automatic Temperature Control uses a Power Transistor, not a Blower Resistor. Power Transistor HVAC
