Timing Belt: Adjustments

ADJUSTING POWER STEERING AND AIR CONDITIONER BELTS

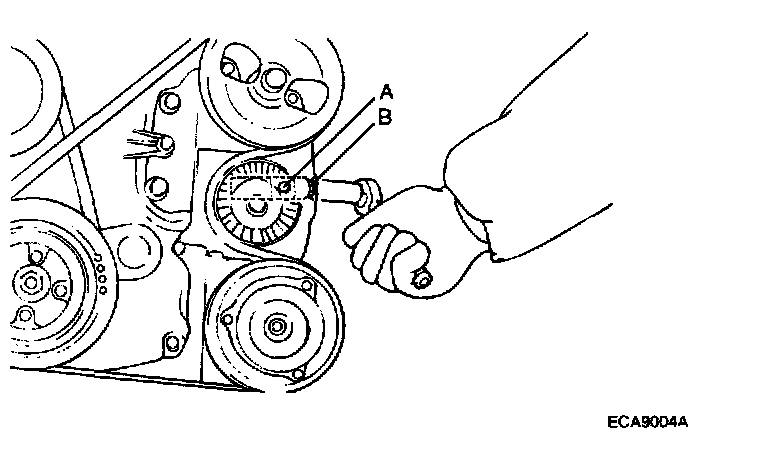

1. Loosen the tension pulley adjustment bolt A.
2. Adjust the belt deflection with adjustment bolt B.
3. Tighten bolt A.





4. Recheck the belt deflection and readjust, if necessary.

NOTE: Before rechecking, crank the engine one more revolution.
