Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Locations

Engine - Coolant Temperature Sensor/Switch: Locations

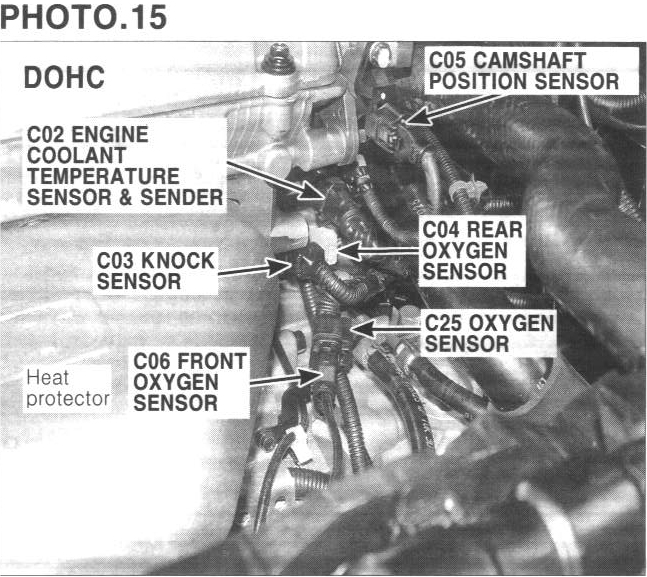

Photo 15:

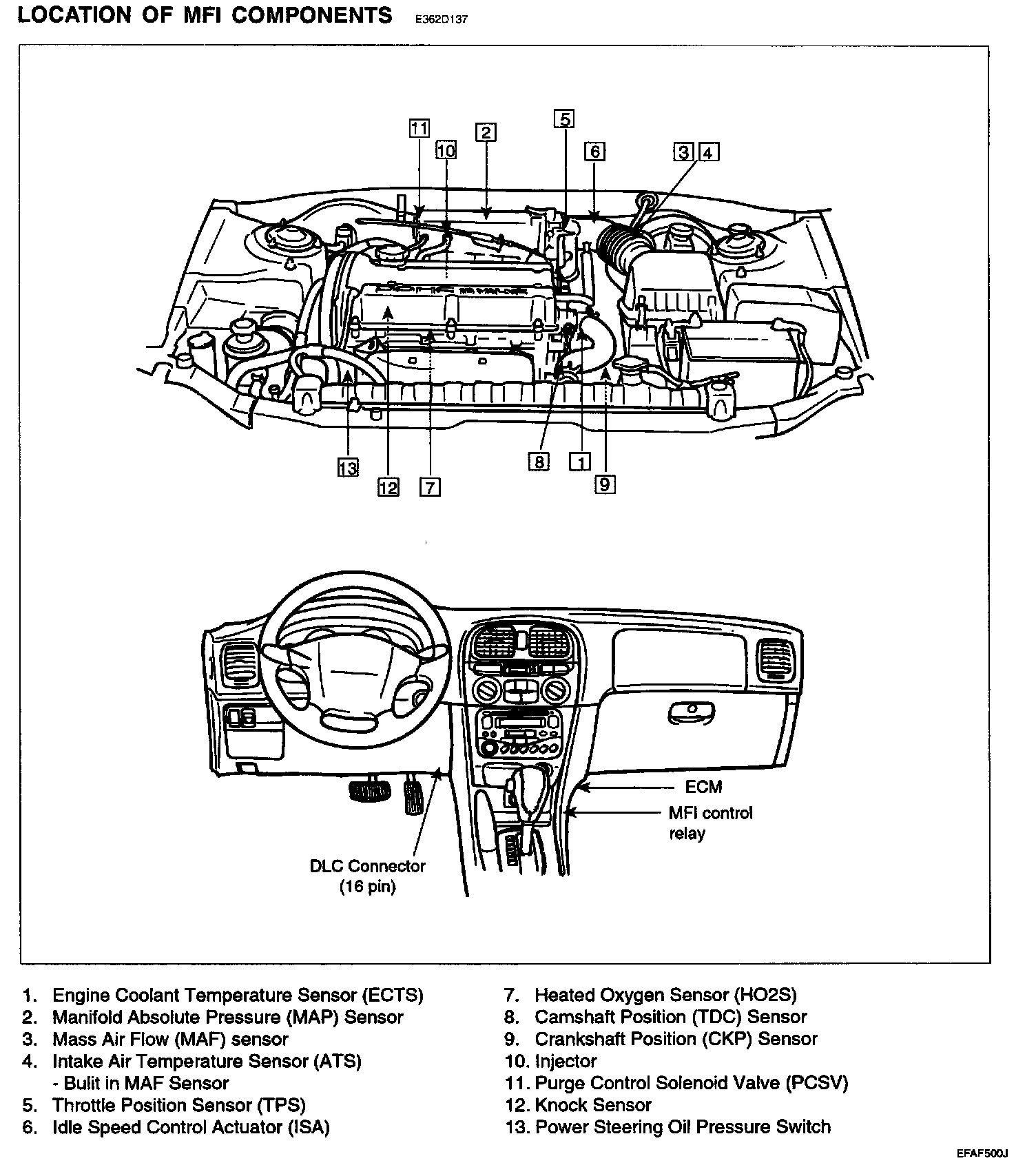

Location Of MFI Components:
