Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Clockspring Assembly / Spiral Cable, Air Bag

Clockspring Assembly / Spiral Cable, Air Bag

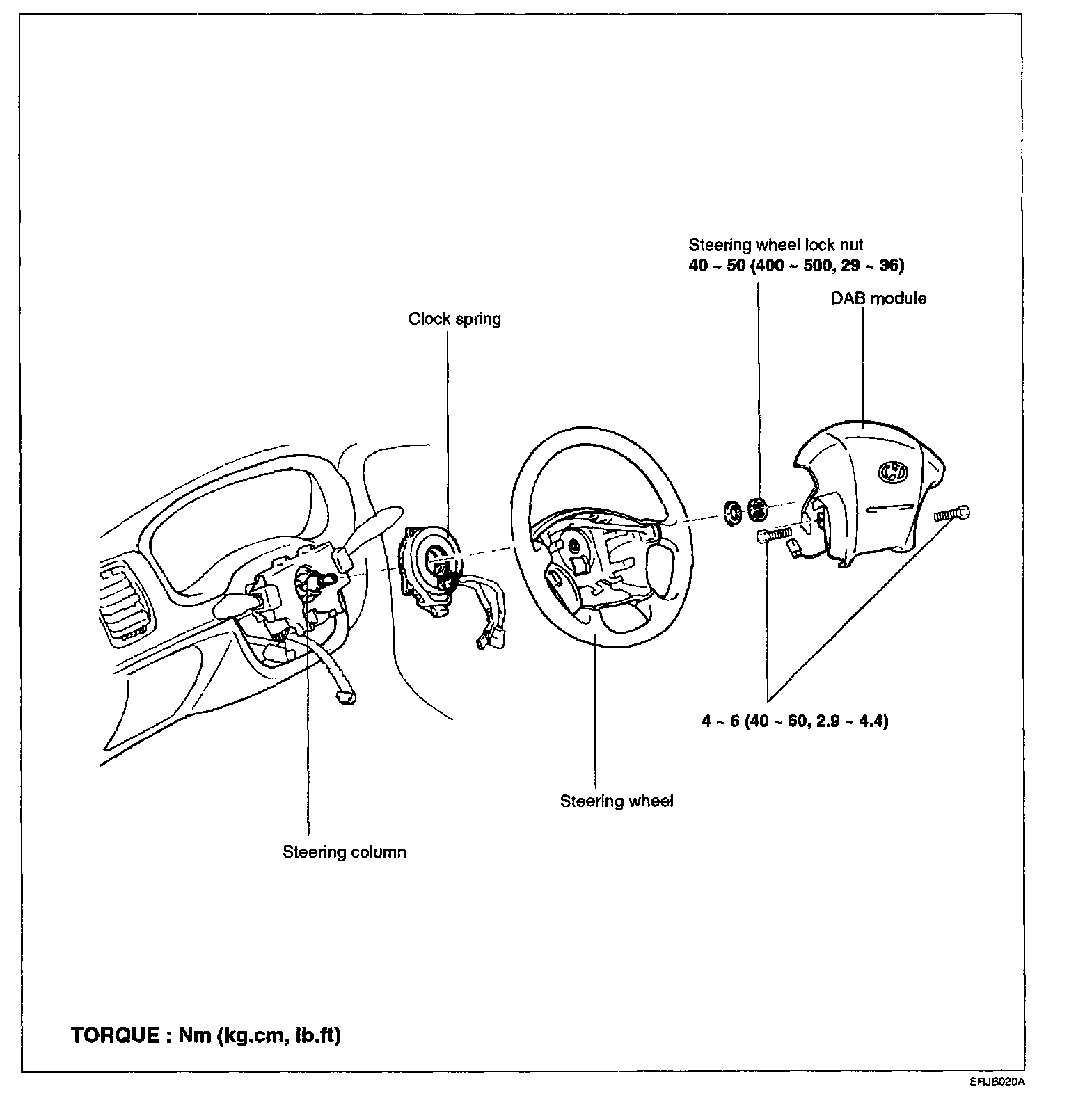

Air Bag Module (Driver Side) And Clock Spring:
