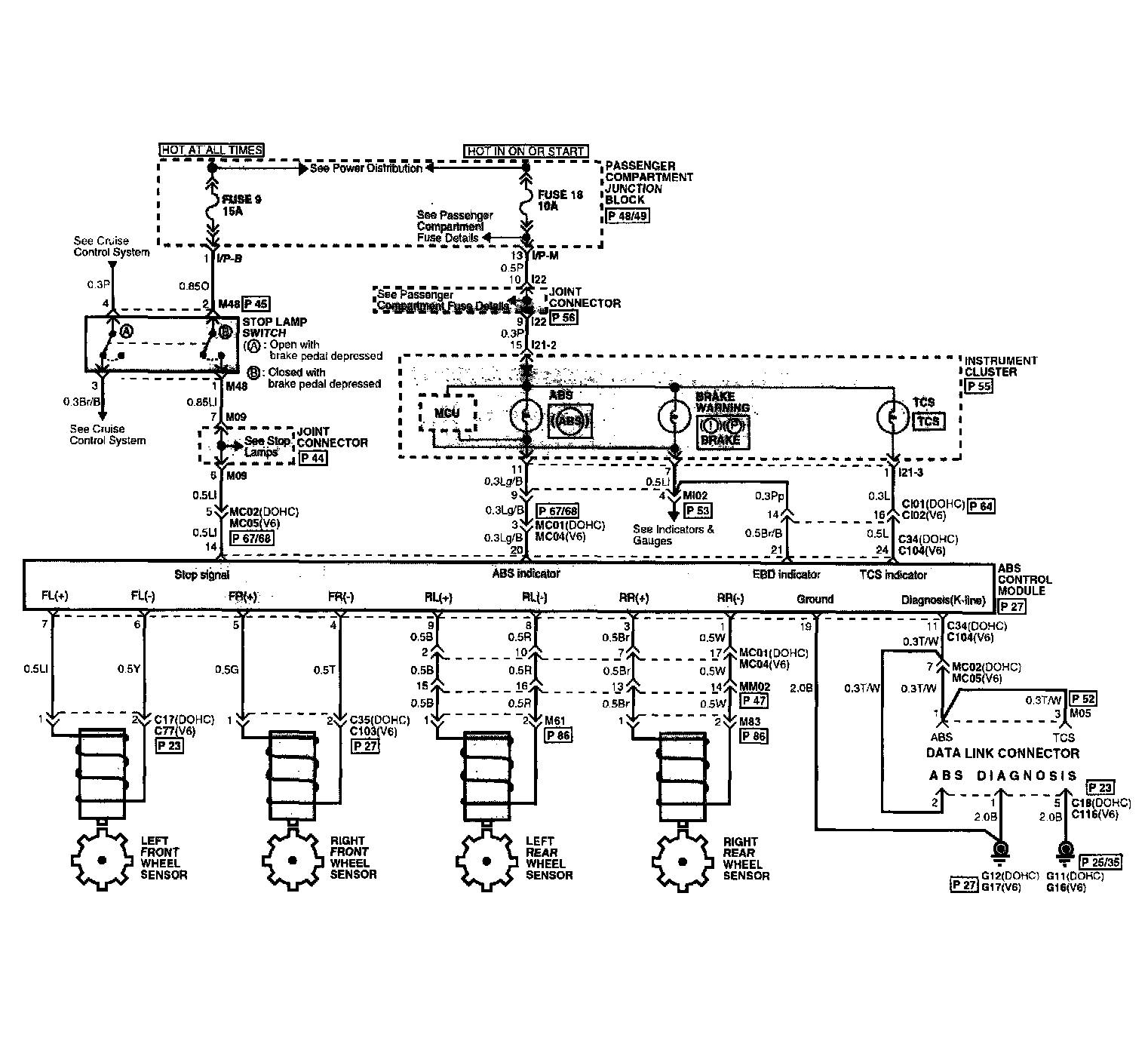

Home >> Hyundai >> 2005 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Circuit Diagrams (Schematics) >> Circuit Diagram (2)
